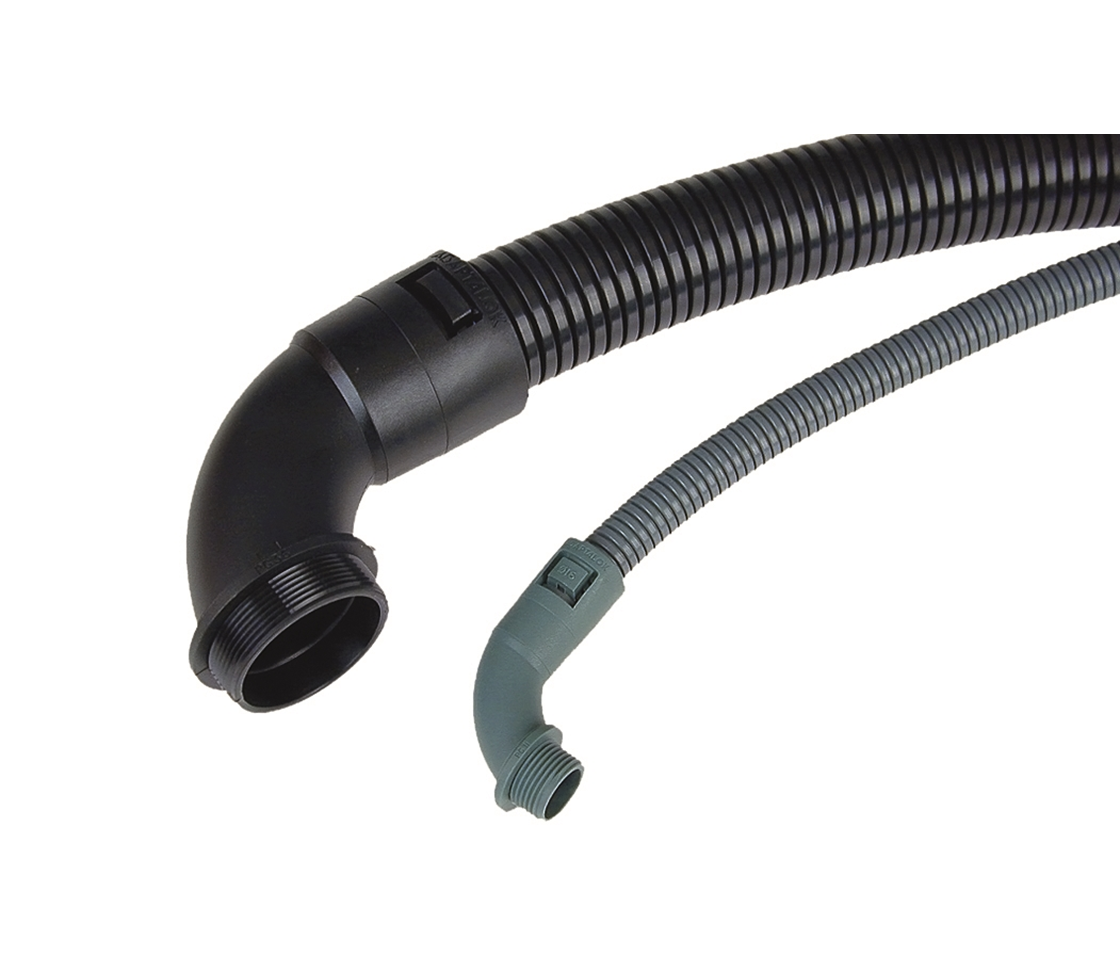

Conduit fitting ADAPTALOK 90 Metr.
One-part connector with two hooks for corrugated conduits.
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Metric
Type of connection
Snap connection
Construction type
External thread
Revolving thread
No
Model
90°-elbow
Degree of protection (IP)
IP66
Halogen free
No
UV-resistant
No
Operating temperature
-40...+120 °C
11 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 803217021Nominal diameter
mm 17Thread connection size M20 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803217025Nominal diameter
mm 23Thread connection size M25 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803217040Nominal diameter
mm 36Thread connection size M40 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803219016Nominal diameter
mm 10Thread connection size M16 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803219017Nominal diameter
mm 12Thread connection size M16 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803219020Nominal diameter
mm 12Thread connection size M20 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803219021Nominal diameter
mm 17Thread connection size M20 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803219025Nominal diameter
mm 23Thread connection size M25 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803219032Nominal diameter
mm 29Thread connection size M32 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803219040Nominal diameter
mm 36Thread connection size M40 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803219050Nominal diameter
mm 48Thread connection size M50 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 1 StkPrice / SU excl. VATCampaignEtiketten druckenAdd item to the shopping cart
