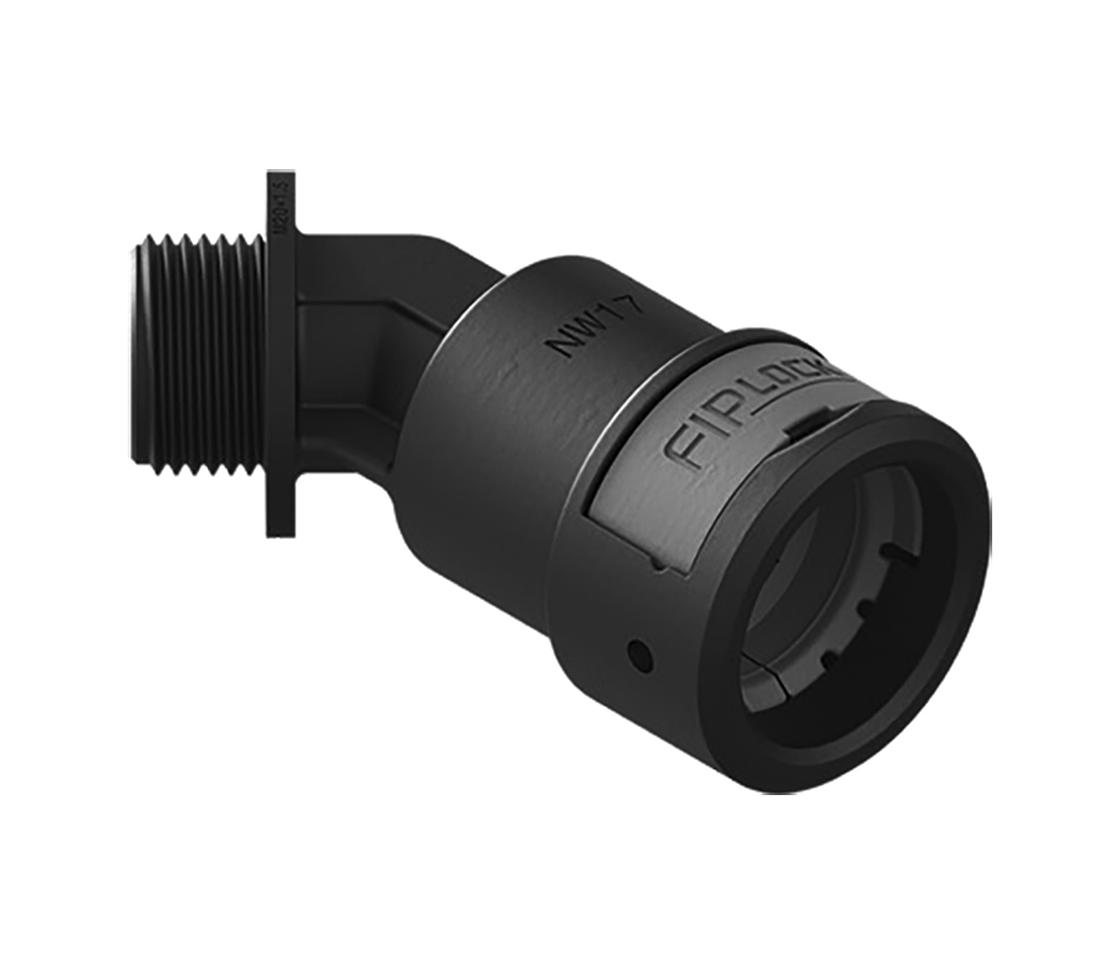

Fitting 45° elbow, metric, plastic thread
The one-piece 45°-elbow cable protection conduit fitting AAPA-M with a metric connection thread, made of specially modified, free-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. With the brand new 360° interlocking system and an inside conduit seal, AAPA-M complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AAPA-M
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Metric
Thread
metrisch
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
45°-elbow
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
22 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 880000000Nominal diameter
mm 24.7Thread connection size M12 x 1.5Lowest inner diameter hose
mm 5.3Max. outer diameter hose
mmColour BlackThread length
mm 11Total length
mm 55.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000001Nominal diameter
mm 24.7Thread connection size M12 x 1.5Lowest inner diameter hose
mm 5.3Max. outer diameter hose
mmColour GreyThread length
mm 11Total length
mm 55.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000002Nominal diameter
mm 24.7Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9.2Max. outer diameter hose
mmColour BlackThread length
mm 11Total length
mm 56.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000003Nominal diameter
mm 24.7Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9.2Max. outer diameter hose
mmColour GreyThread length
mm 11Total length
mm 56.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000004Nominal diameter
mm 28.5Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9Max. outer diameter hose
mmColour BlackThread length
mm 11Total length
mm 59.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000005Nominal diameter
mm 28.5Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9Max. outer diameter hose
mmColour GreyThread length
mm 11Total length
mm 59.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000006Nominal diameter
mm 28.5Thread connection size M20 x 1.5Lowest inner diameter hose
mm 13Max. outer diameter hose
mmColour BlackThread length
mm 11Total length
mm 61AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000007Nominal diameter
mm 28.5Thread connection size M20 x 1.5Lowest inner diameter hose
mm 13Max. outer diameter hose
mmColour GreyThread length
mm 11Total length
mm 61AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000008Nominal diameter
mm 34Thread connection size M20 x 1.5Lowest inner diameter hose
mm 13.8Max. outer diameter hose
mmColour BlackThread length
mm 11Total length
mm 74.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000009Nominal diameter
mm 34Thread connection size M20 x 1.5Lowest inner diameter hose
mm 13.8Max. outer diameter hose
mmColour GreyThread length
mm 11Total length
mm 74.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000010Nominal diameter
mm 41.7Thread connection size M25 x 1.5Lowest inner diameter hose
mm 17.7Max. outer diameter hose
mmColour BlackThread length
mm 12Total length
mm 80.3AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000011Nominal diameter
mm 41.7Thread connection size M25 x 1.5Lowest inner diameter hose
mm 17.7Max. outer diameter hose
mmColour GreyThread length
mm 12Total length
mm 80.3AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000012Nominal diameter
mm 48.2Thread connection size M32 x 1.5Lowest inner diameter hose
mm 25Max. outer diameter hose
mmColour BlackThread length
mm 15Total length
mm 85.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000013Nominal diameter
mm 48.2Thread connection size M32 x 1.5Lowest inner diameter hose
mm 25Max. outer diameter hose
mmColour GreyThread length
mm 15Total length
mm 85.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000014Nominal diameter
mm 59.7Thread connection size M40 x 1.5Lowest inner diameter hose
mm 32.8Max. outer diameter hose
mmColour BlackThread length
mm 19Total length
mm 112.4AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000015Nominal diameter
mm 59.7Thread connection size M40 x 1.5Lowest inner diameter hose
mm 32.8Max. outer diameter hose
mmColour GreyThread length
mm 19Total length
mm 112.4AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000016Nominal diameter
mm 59.7Thread connection size M50 x 1.5Lowest inner diameter hose
mm 36Max. outer diameter hose
mmColour BlackThread length
mm 19Total length
mm 116AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000017Nominal diameter
mm 59.7Thread connection size M50 x 1.5Lowest inner diameter hose
mm 36Max. outer diameter hose
mmColour GreyThread length
mm 19Total length
mm 116AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000018Nominal diameter
mm 71Thread connection size M50 x 1.5Lowest inner diameter hose
mm 42.4Max. outer diameter hose
mmColour BlackThread length
mm 19Total length
mm 121.4AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000019Nominal diameter
mm 71Thread connection size M50 x 1.5Lowest inner diameter hose
mm 42.4Max. outer diameter hose
mmColour GreyThread length
mm 19Total length
mm 121.4AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000020Nominal diameter
mm 71Thread connection size M63 x 1.5Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mmColour BlackThread length
mm 19Total length
mm 126AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000021Nominal diameter
mm 71Thread connection size M63 x 1.5Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mmColour GreyThread length
mm 19Total length
mm 126AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
