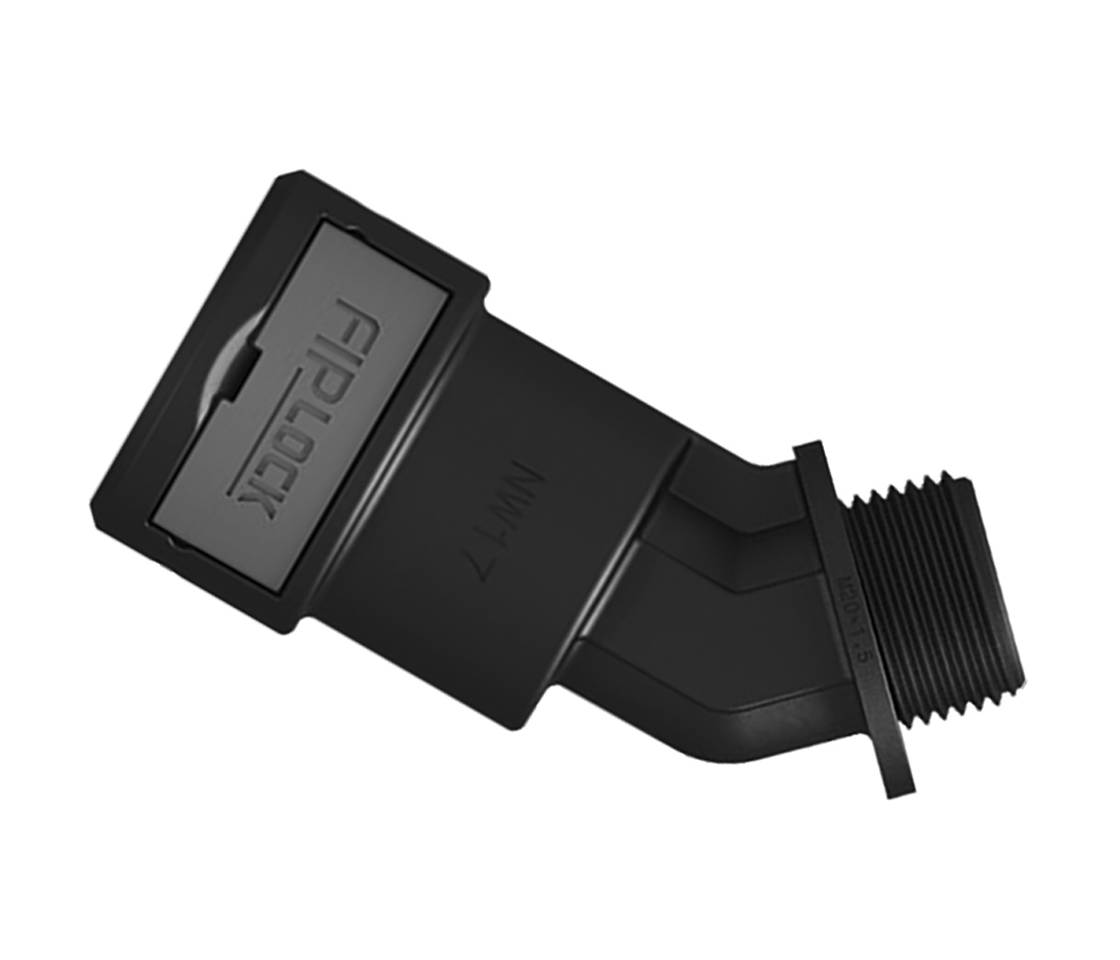

Fitting 45° elbow, PG, plastic thread
The one-piece 45°-elbow cable protection conduit fitting AAPA with a PG thread, made of specially modified, free-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. With the brand new 360° interlocking system and an inside conduit seal, AAPA-PG complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AAPA-PG
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Other
Thread
PG
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
45°-elbow
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
14 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 880000074Nominal diameter
mm 24.7Thread connection size PG9Lowest inner diameter hose
mm 11Max. outer diameter hose
mmColour BlackThread length
mm 11Total length
mm 56.6AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000075Nominal diameter
mm 24.7Thread connection size PG9Lowest inner diameter hose
mm 11Max. outer diameter hose
mmColour GreyThread length
mm 11Total length
mm 56.6AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000076Nominal diameter
mm 28.5Thread connection size PG11Lowest inner diameter hose
mm 12Max. outer diameter hose
mmColour BlackThread length
mm 11Total length
mm 60.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000077Nominal diameter
mm 28.5Thread connection size PG11Lowest inner diameter hose
mm 12Max. outer diameter hose
mmColour GreyThread length
mm 11Total length
mm 60.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000078Nominal diameter
mm 34Thread connection size PG16Lowest inner diameter hose
mm 16.7Max. outer diameter hose
mmColour BlackThread length
mm 11Total length
mm 74.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000079Nominal diameter
mm 34Thread connection size PG16Lowest inner diameter hose
mm 16.7Max. outer diameter hose
mmColour GreyThread length
mm 11Total length
mm 74.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000080Nominal diameter
mm 41.7Thread connection size PG21Lowest inner diameter hose
mm 21.5Max. outer diameter hose
mmColour BlackThread length
mm 12Total length
mm 81.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000081Nominal diameter
mm 41.7Thread connection size PG21Lowest inner diameter hose
mm 21.5Max. outer diameter hose
mmColour GreyThread length
mm 12Total length
mm 81.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000082Nominal diameter
mm 48.2Thread connection size PG29Lowest inner diameter hose
mm 29.7Max. outer diameter hose
mmColour BlackThread length
mm 12Total length
mm 84.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000083Nominal diameter
mm 48.2Thread connection size PG29Lowest inner diameter hose
mm 29.7Max. outer diameter hose
mmColour GreyThread length
mm 12Total length
mm 84.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000084Nominal diameter
mm 59.7Thread connection size PG36Lowest inner diameter hose
mm 35.4Max. outer diameter hose
mmColour BlackThread length
mm 13Total length
mm 110.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000085Nominal diameter
mm 59.7Thread connection size PG36Lowest inner diameter hose
mm 35.4Max. outer diameter hose
mmColour GreyThread length
mm 13Total length
mm 110.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000086Nominal diameter
mm 71Thread connection size PG48Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mmColour BlackThread length
mm 13Total length
mm 119.4AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000087Nominal diameter
mm 71Thread connection size PG48Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mmColour GreyThread length
mm 13Total length
mm 119.4AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
