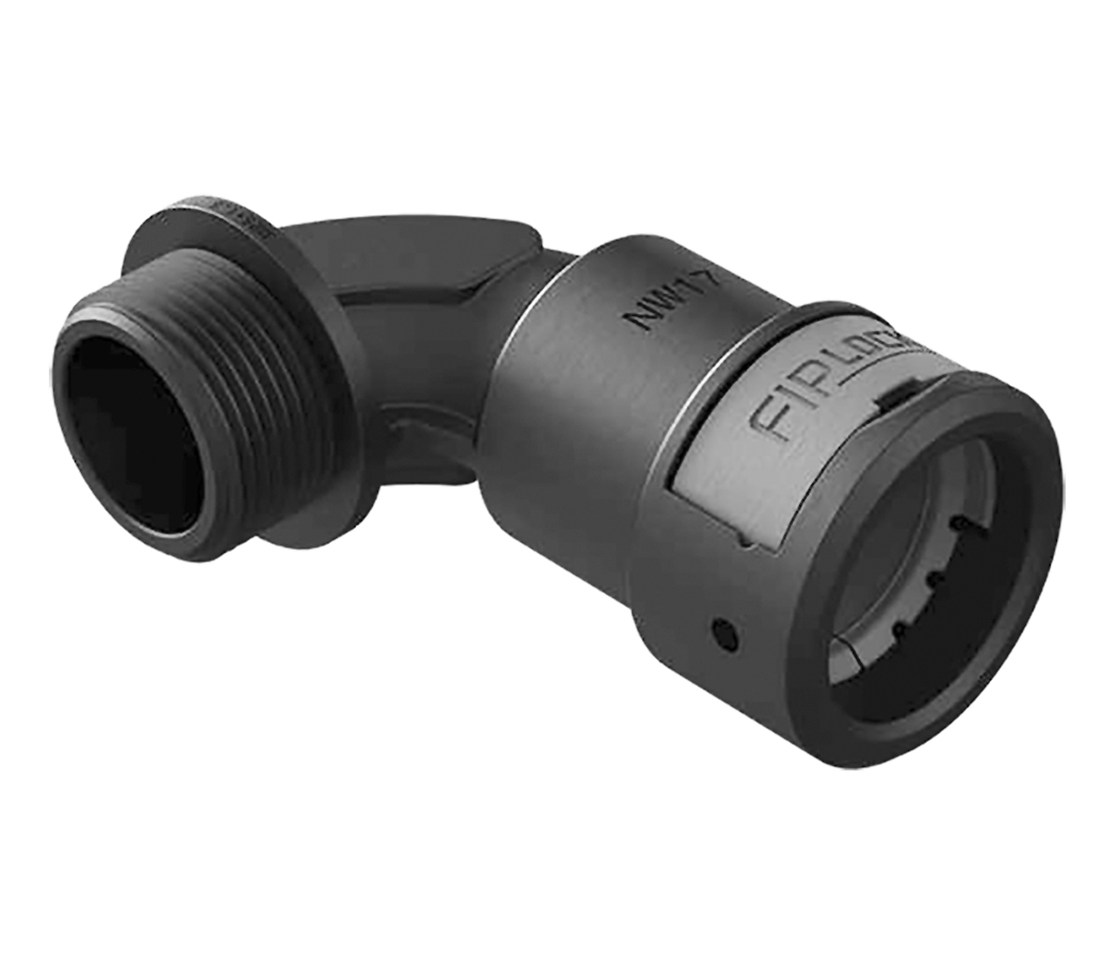

AEPA-M - 90° Cable Protection Fitting, Metric Thread, IP69
The AEPA-M 90° cable protection fitting with metric threading, made from specially modified, halogen-free Polyamide 6, is an ideal solution for protecting your cables. This self-extinguishing fitting is resistant to most chemical media. With its 360° locking system and internal pipe seals, in conjunction with FIPLOCK corrugated tubes, it achieves the highest protection class IP69. It provides optimal protection against dust and water, is UV-resistant, and suitable for temperatures from -50 to +120 °C.
series
AEPA-M
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Metric
Thread
metrisch
Type of connection
Plug-in connection
Construction type
External thread
Revolving thread
No
Model
90°-Bend
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
20 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 880000129Nominal diameter
mm 17Thread connection size M20 x 1.5Lowest inner diameter hose
mm 10.2Max. outer diameter hose
mm 34Colour GreyThread length
mm 11Total length
mm 48.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000130Nominal diameter
mm 17Thread connection size M25 x 1.5Lowest inner diameter hose
mm 14.8Max. outer diameter hose
mm 34Colour BlackThread length
mm 12Total length
mm 49.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000131Nominal diameter
mm 17Thread connection size M25 x 1.5Lowest inner diameter hose
mm 14.8Max. outer diameter hose
mm 34Colour GreyThread length
mm 12Total length
mm 49.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000133Nominal diameter
mm 23Thread connection size M25 x 1.5Lowest inner diameter hose
mm 15.9Max. outer diameter hose
mm 41.7Colour GreyThread length
mm 12Total length
mm 62.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000134Nominal diameter
mm 23Thread connection size M32 x 1.5Lowest inner diameter hose
mm 22.8Max. outer diameter hose
mm 41.7Colour BlackThread length
mm 15Total length
mm 65.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000135Nominal diameter
mm 23Thread connection size M32 x 1.5Lowest inner diameter hose
mm 22.8Max. outer diameter hose
mm 41.7Colour GreyThread length
mm 15Total length
mm 65.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000136Nominal diameter
mm 29Thread connection size M32 x 1.5Lowest inner diameter hose
mm 21.3Max. outer diameter hose
mm 48.2Colour BlackThread length
mm 15Total length
mm 72.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000137Nominal diameter
mm 29Thread connection size M32 x 1.5Lowest inner diameter hose
mm 21.3Max. outer diameter hose
mm 48.2Colour GreyThread length
mm 15Total length
mm 72.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000138Nominal diameter
mm 29Thread connection size M40 x 1.5Lowest inner diameter hose
mm 28.5Max. outer diameter hose
mm 48.2Colour BlackThread length
mm 19Total length
mm 76.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000139Nominal diameter
mm 29Thread connection size M40 x 1.5Lowest inner diameter hose
mm 28.5Max. outer diameter hose
mm 48.2Colour GreyThread length
mm 19Total length
mm 76.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000140Nominal diameter
mm 36Thread connection size M40 x 1.5Lowest inner diameter hose
mm 30.2Max. outer diameter hose
mm 59.7Colour BlackThread length
mm 19Total length
mm 90.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000141Nominal diameter
mm 36Thread connection size M40 x 1.5Lowest inner diameter hose
mm 30.2Max. outer diameter hose
mm 59.7Colour GreyThread length
mm 19Total length
mm 90.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000142Nominal diameter
mm 36Thread connection size M50 x 1.5Lowest inner diameter hose
mm 36.1Max. outer diameter hose
mm 59.7Colour BlackThread length
mm 19Total length
mm 90.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000143Nominal diameter
mm 36Thread connection size M50 x 1.5Lowest inner diameter hose
mm 36.1Max. outer diameter hose
mm 59.7Colour GreyThread length
mm 19Total length
mm 90.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000144Nominal diameter
mm 48Thread connection size M50 x 1.5Lowest inner diameter hose
mm 38.9Max. outer diameter hose
mm 71Colour BlackThread length
mm 19Total length
mm 102AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000145Nominal diameter
mm 48Thread connection size M50 x 1.5Lowest inner diameter hose
mm 38.9Max. outer diameter hose
mm 71Colour GreyThread length
mm 19Total length
mm 102AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000146Nominal diameter
mm 48Thread connection size M63 x 1.5Lowest inner diameter hose
mm 47.9Max. outer diameter hose
mm 71Colour BlackThread length
mm 19Total length
mm 102AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000147Nominal diameter
mm 48Thread connection size M63 x 1.5Lowest inner diameter hose
mm 47.9Max. outer diameter hose
mm 71Colour GreyThread length
mm 19Total length
mm 102AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001306Nominal diameter
mm 17Thread connection size M20 x 1.5Lowest inner diameter hose
mm 10.2Max. outer diameter hose
mm 34Colour BlackThread length
mm 11Total length
mm 48.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001307Nominal diameter
mm 23Thread connection size M25 x 1.5Lowest inner diameter hose
mm 15.9Max. outer diameter hose
mm 41.7Colour BlackThread length
mm 12Total length
mm 62.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
