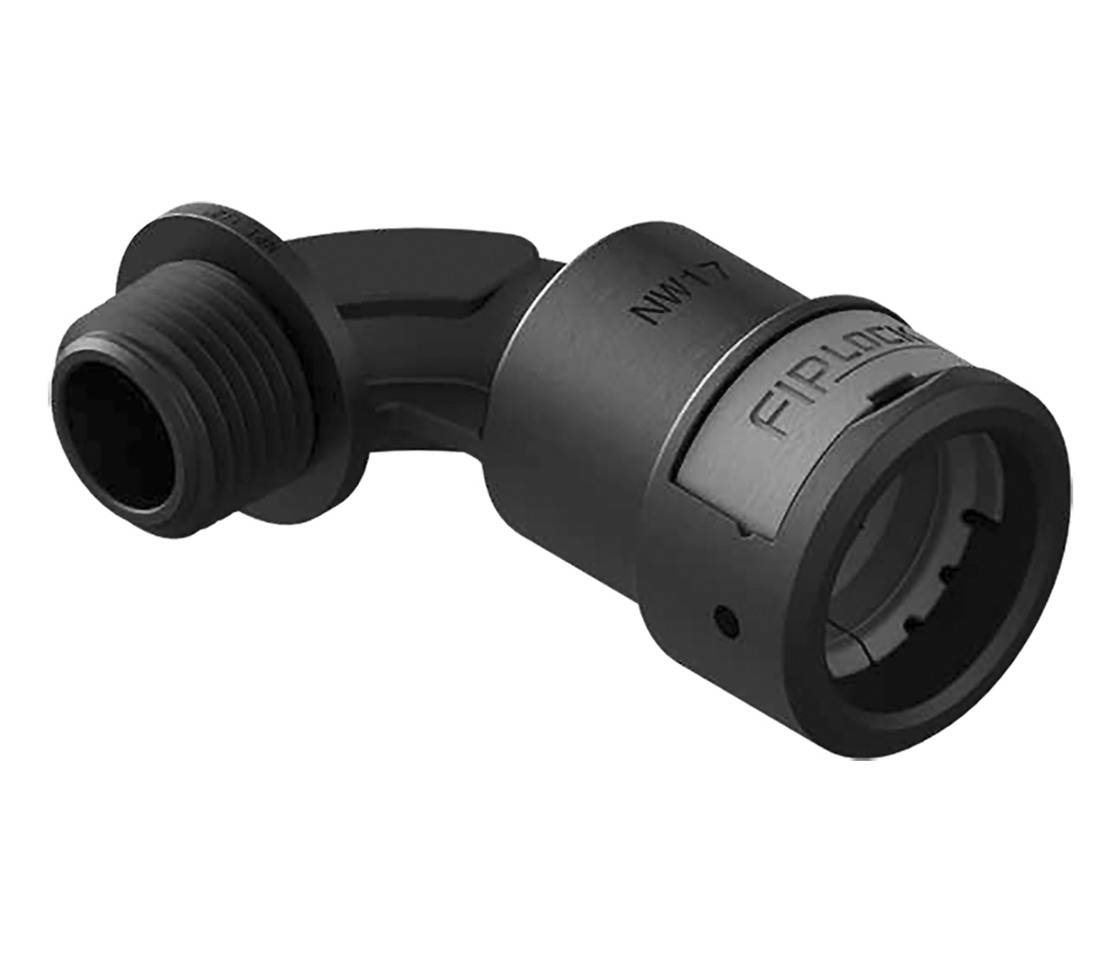

AEPA-NPT - Screw connection arc angle 90°, NPT
AEPA-NPT is a one-part 90° cable protection screw connection with NPT connection thread, of specially modified halogen-free polyamide 6, self-extinguishing and resilient against most common chemical media. Thanks to the newly developed 360° interlocking system and inside-conduit seals, AEPA-NPT complies with the highest protection class IP69 in combination with our FIPLOCK corrugated tubes.
series
AEPA-NPT
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
NPT
Thread
NPT
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
45°-elbow
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
