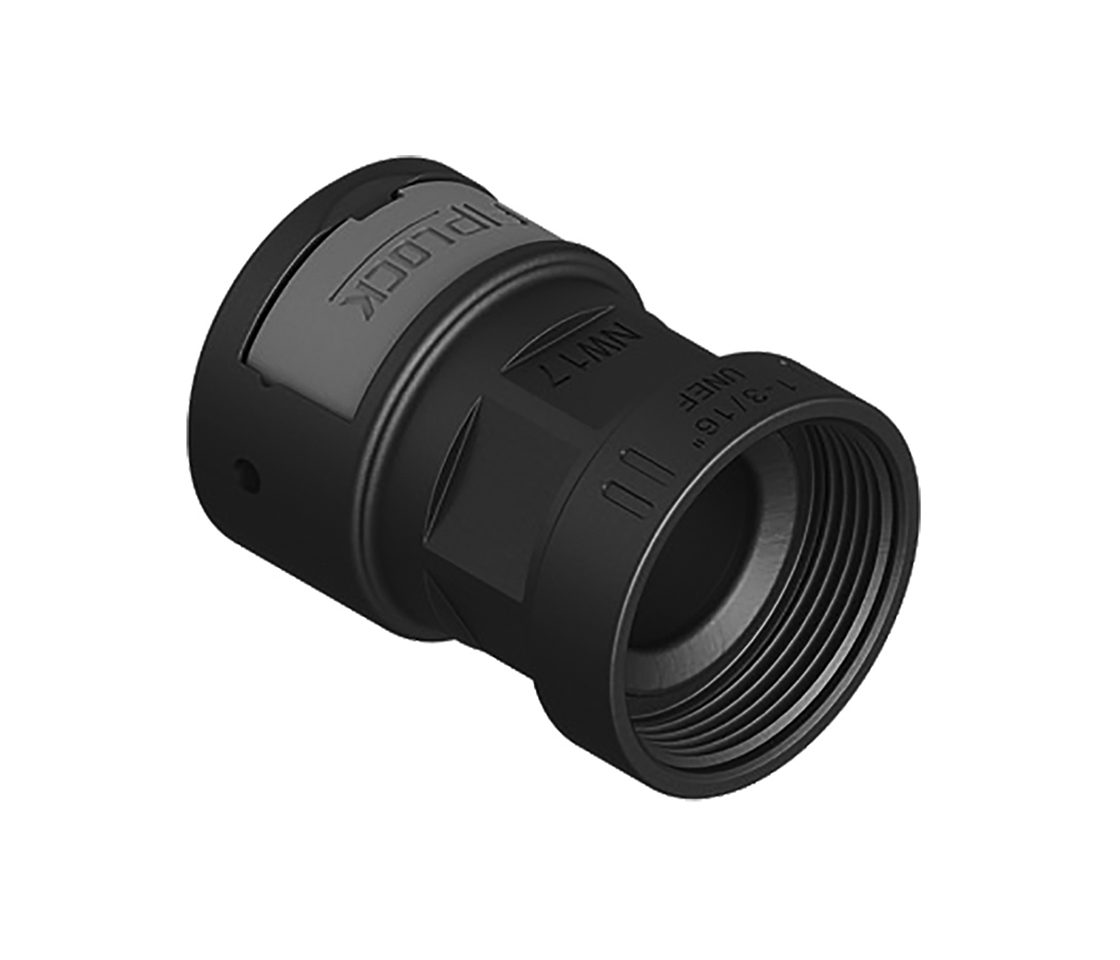

Conduit fitting 6pc FIPLOCK SV straight, black 1-3/16""-UNEF (MIL), NW29, IG
The one-piece cable protection conduit fitting AFPA-U-M with an UNEF/UNS female thread for MIL DTL 5015 connector series, made of specially modified, free-halogen polyamide 6.With the brand new 360° interlocking system and an inside conduit seal, AFPA-U-M complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AFPA-U-M
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
UNEF
Thread
UNEF
Type of connection
Thread
Construction type
Internal thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
1 Artikel
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHF excl. VAT
3D Modell Cadenas
- Item 880000313Nominal diameter
mm 48.4Thread connection size OtherLowest inner diameter hose
mm 22.6Max. outer diameter hose
mmColour BlackThread length
mm 48.7Total length
mm 8AvailabilitySU 1 PakPrice / SU in CHF excl. VAT3D Modell Cadenas
This item is available in 27 other versions.
