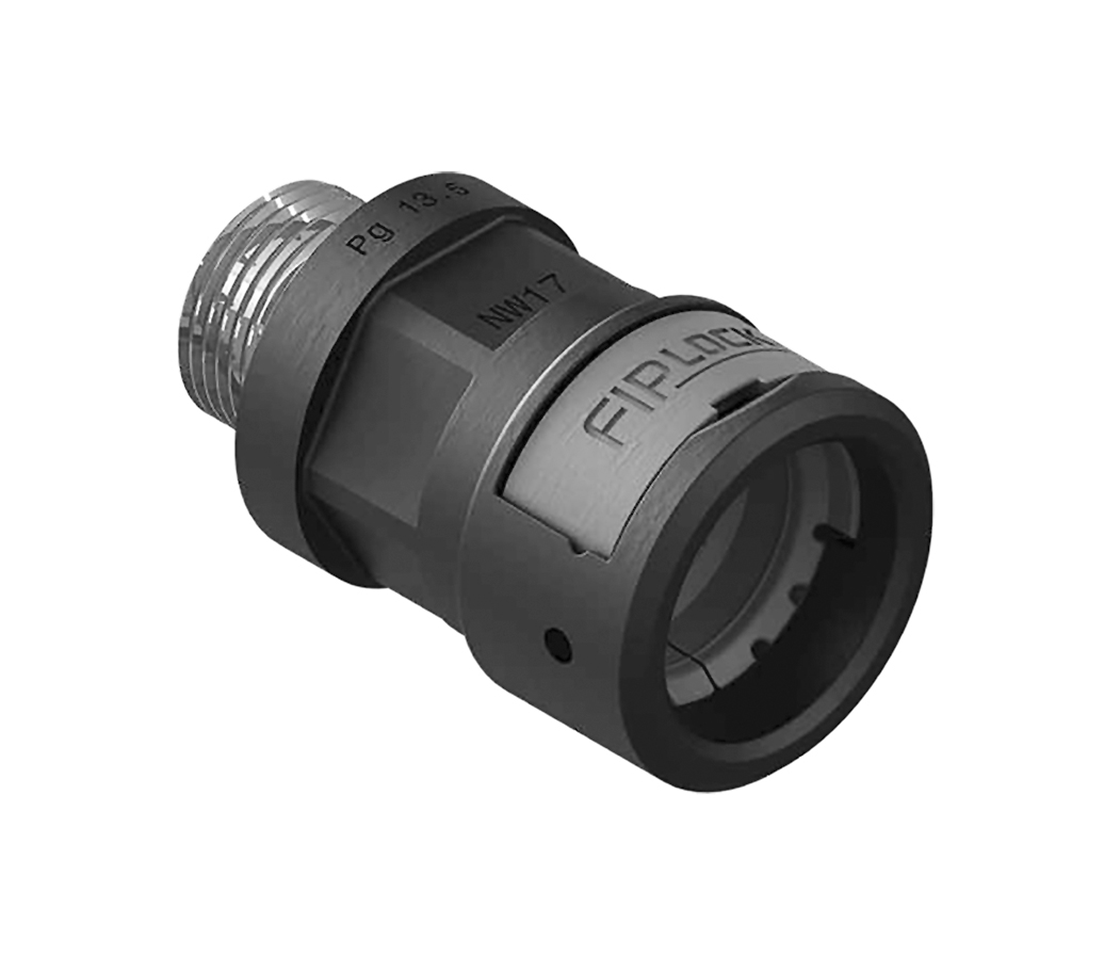

ASPA-PGM - Straight Cable Protection Fitting, PG Metal Thread, IP69
The ASPA-PGM cable protection fitting with PG metal thread and a body made from specially modified, halogen-free Polyamide 6, offers a premium solution for protecting your cables. Self-extinguishing and resistant to most chemical media, this fitting ensures IP69 protection with its 360° locking system and internal pipe seals, when used with FIPLOCK corrugated tubes. UV-resistant and suitable for temperatures from -50 to +120 °C, it is the perfect choice for demanding applications.
series
ASPA-PGM
Material
Polyamide (PA)
Thread material
Brass
Thread type
Other
Thread
PG
Type of connection
Plug-in connection
Construction type
External thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
17 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 880000524Nominal diameter
mm 10Thread connection size PG9Lowest inner diameter hose
mm 9.2Max. outer diameter hose
mm 24.7Colour BlackThread length
mm 12Total length
mm 46AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000526Nominal diameter
mm 12Thread connection size PG11Lowest inner diameter hose
mm 12.4Max. outer diameter hose
mm 28.5Colour BlackThread length
mm 12Total length
mm 47.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000528Nominal diameter
mm 17Thread connection size PG13.5Lowest inner diameter hose
mm 14Max. outer diameter hose
mm 34Colour BlackThread length
mm 13Total length
mm 57.3AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000530Nominal diameter
mm 17Thread connection size PG16Lowest inner diameter hose
mm 16.1Max. outer diameter hose
mm 34Colour BlackThread length
mm 13Total length
mm 58.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000532Nominal diameter
mm 23Thread connection size PG21Lowest inner diameter hose
mm 21.6Max. outer diameter hose
mm 41.7Colour BlackThread length
mm 14Total length
mm 58.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000534Nominal diameter
mm 23Thread connection size PG29Lowest inner diameter hose
mm 23.3Max. outer diameter hose
mm 41.7Colour BlackThread length
mm 14Total length
mm 58.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000535Nominal diameter
mm 23Thread connection size PG29Lowest inner diameter hose
mm 23.3Max. outer diameter hose
mm 41.7Colour GreyThread length
mm 14Total length
mm 58.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000538Nominal diameter
mm 36Thread connection size PG36Lowest inner diameter hose
mm 36.5Max. outer diameter hose
mm 59.7Colour BlackThread length
mm 17Total length
mm 75.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000540Nominal diameter
mm 48Thread connection size PG48Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mm 71Colour BlackThread length
mm 17Total length
mm 75.3AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001343Nominal diameter
mm 10Thread connection size PG9Lowest inner diameter hose
mm 9.2Max. outer diameter hose
mm 24.7Colour GreyThread length
mm 12Total length
mm 46AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001344Nominal diameter
mm 12Thread connection size PG11Lowest inner diameter hose
mm 12.4Max. outer diameter hose
mm 28.5Colour GreyThread length
mm 12Total length
mm 47.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001345Nominal diameter
mm 17Thread connection size PG13.5Lowest inner diameter hose
mm 14Max. outer diameter hose
mm 34Colour GreyThread length
mm 13Total length
mm 57.3AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001346Nominal diameter
mm 17Thread connection size PG16Lowest inner diameter hose
mm 14Max. outer diameter hose
mm 34Colour GreyThread length
mm 13Total length
mm 57.3AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001347Nominal diameter
mm 23Thread connection size PG21Lowest inner diameter hose
mm 21.6Max. outer diameter hose
mm 41.7Colour GreyThread length
mm 14Total length
mm 58.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001348Nominal diameter
mm 29Thread connection size PG29Lowest inner diameter hose
mm 29Max. outer diameter hose
mm 48.4Colour GreyThread length
mm 14Total length
mm 59AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001349Nominal diameter
mm 36Thread connection size PG36Lowest inner diameter hose
mm 36.5Max. outer diameter hose
mm 59.7Colour GreyThread length
mm 17Total length
mm 75.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001350Nominal diameter
mm 48Thread connection size PG48Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mm 71Colour GreyThread length
mm 17Total length
mm 75.3AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
