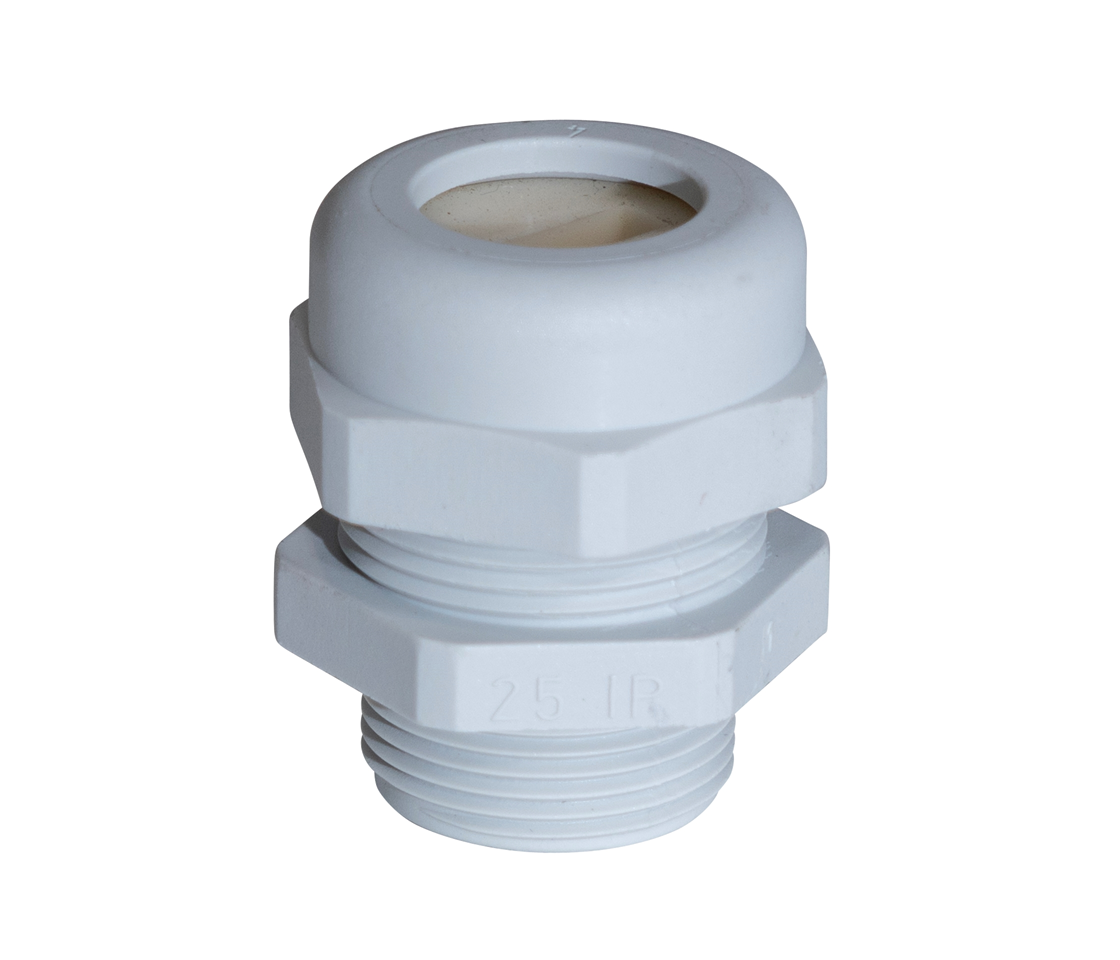

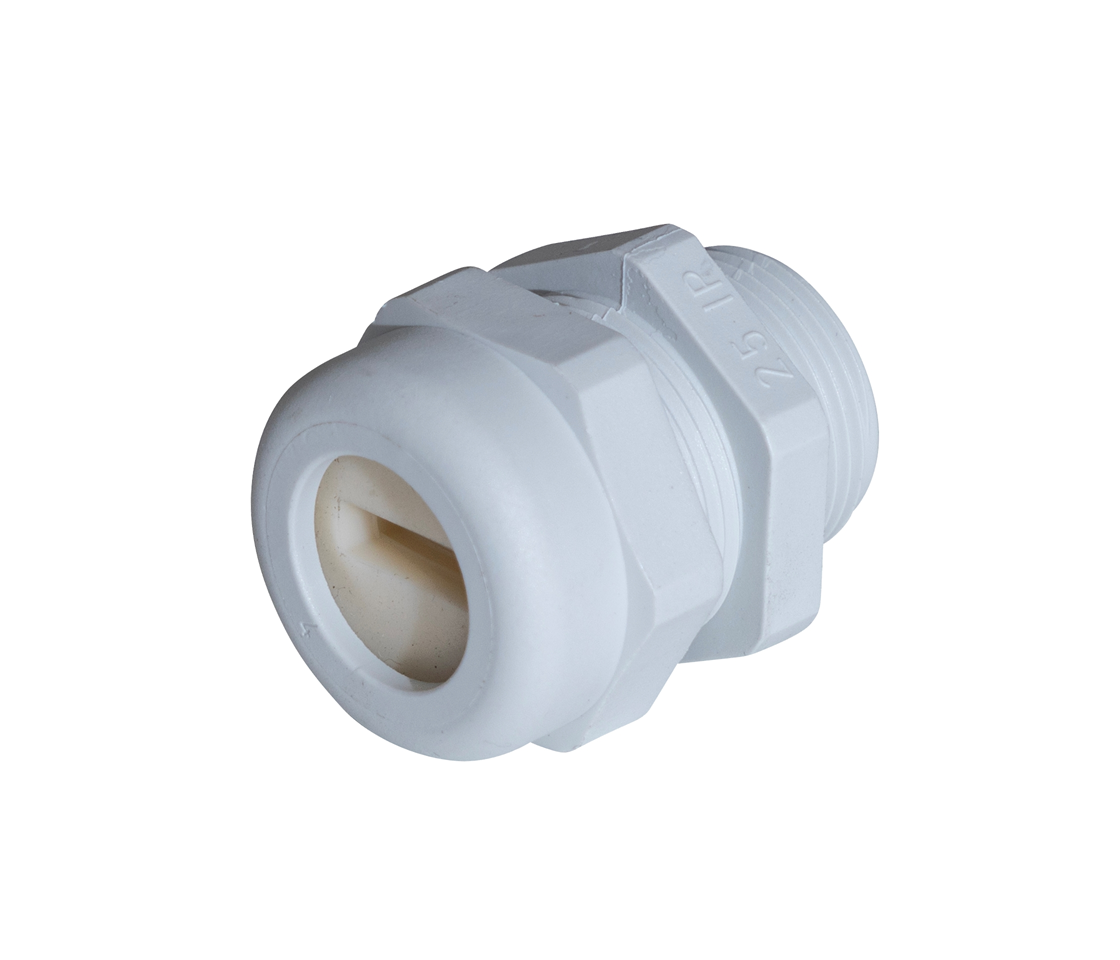

Cable gland for flat cables FLAKA K PA GFK (M), with rounded hole
Discover the aesthetically pleasing flat cable gland FLAKA K PA GFK (M) from Plica, a must-have for all electrical installations. This visually appealing gland is made from high-quality polyamide (PA), ensuring longevity and robustness. It is reinforced with fiberglass and does not require a locknut. The large clamping range, specially designed for flat cables, ensures a flexible and secure installation. It stands out for its high functionality, offering IP68 protection, making it completely dust-tight and resistant to prolonged submersion in water. Additionally, it is halogen-free, thus environmentally friendly. Its temperature range from -30 to +120 °C makes the gland extremely resistant to various environmental conditions. Compliant with EN 60423 standard, it is equipped with a rounded slot hole for easy installation. It features a high-quality sealing ring, but without a multiple density insert and melt adhesive. The sealing quality is ensured by Tefabloc, guaranteeing a reliable seal. Ideal for electricians and installers looking for a reliable, aesthetically pleasing, and simple solution for flat cable connections, the FLAKA K PA GFK (M) flat cable gland from Plica offers an optimal mix of quality, functionality and design.
Pitch thread
1.5 mm
Wrench width
19 mm
Colour
Grey
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Glass-fibre reinforced
Yes
Shock resistant
No
Bend radius protection/trumpet flare
No
With locknut
No
Flat cable coupling
Yes
Separable screw gland
No
Type of sealing
Sealing ring
Multi seal area
No
Operating temperature
-30...+120 °C
Degree of protection (IP)
IP68
Halogen free
Yes
UV-resistant
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
EMC-version
No
standard
EN 60423
opening shape
Mit abgerundetem Schlitzloch
interior hot melt adhesive
No
sealing quality
Tefabloc
22 Artikel
Reset filters
Filter
Item
Thread type
Nominal thread size metric/PG
number opening
Thread length mm
Suitable for cable diameter mm
RAL-number
Availability
SU
Price / SUexcl. VAT
3D Modell Cadenas
- Item 905107160Thread type MetricNominal thread size metric/PG 16number openingThread length
mm 8Suitable for cable diameter
mm 5x11RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107200Thread type MetricNominal thread size metric/PG 20number openingThread length
mm 9Suitable for cable diameter
mm 5x12RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107201Thread type MetricNominal thread size metric/PG 20number openingThread length
mm 9Suitable for cable diameter
mm 7.5x14RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107202Thread type MetricNominal thread size metric/PG 20number openingThread length
mm 9Suitable for cable diameter
mm 5x16RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107203Thread type MetricNominal thread size metric/PG 20number openingThread length
mm 9Suitable for cable diameter
mm 5x17RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107250Thread type MetricNominal thread size metric/PG 25number openingThread length
mm 11Suitable for cable diameter
mm 7x18RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107251Thread type MetricNominal thread size metric/PG 25number openingThread length
mm 11Suitable for cable diameter
mm 9x15RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107252Thread type MetricNominal thread size metric/PG 25number openingThread length
mm 11Suitable for cable diameter
mm 8x25RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107320Thread type MetricNominal thread size metric/PG 32number openingThread length
mm 12Suitable for cable diameter
mm 6x29RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107321Thread type MetricNominal thread size metric/PG 32number openingThread length
mm 12Suitable for cable diameter
mm 6x30RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107400Thread type MetricNominal thread size metric/PG 40number openingThread length
mm 15Suitable for cable diameter
mm 6x36RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107401Thread type MetricNominal thread size metric/PG 40number openingThread length
mm 15Suitable for cable diameter
mm 8x36RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107402Thread type MetricNominal thread size metric/PG 40number openingThread length
mm 15Suitable for cable diameter
mm 11x34RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107403Thread type MetricNominal thread size metric/PG 40number openingThread length
mm 15Suitable for cable diameter
mm 12x35RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107405Thread type MetricNominal thread size metric/PG 40number openingThread length
mm 15Suitable for cable diameter
mm 10x38RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107406Thread type MetricNominal thread size metric/PG 40number openingThread length
mm 15Suitable for cable diameter
mm 13x35RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107501Thread type MetricNominal thread size metric/PG 50number openingThread length
mm 15Suitable for cable diameter
mm 14x37RAL-number 7035AvailabilitySU 10 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107502Thread type MetricNominal thread size metric/PG 50number openingThread length
mm 15Suitable for cable diameter
mm 6.5x47RAL-number 7035AvailabilitySU 10 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107503Thread type MetricNominal thread size metric/PG 50number openingThread length
mm 15Suitable for cable diameter
mm 9x43RAL-number 7035AvailabilitySU 10 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107631Thread type MetricNominal thread size metric/PG 63number openingThread length
mm 15Suitable for cable diameter
mm 15x45RAL-number 7035AvailabilitySU 5 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107632Thread type MetricNominal thread size metric/PG 63number openingThread length
mm 15Suitable for cable diameter
mm 7x18RAL-number 7035AvailabilitySU 5 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107633Thread type MetricNominal thread size metric/PG 63number openingThread length
mm 15Suitable for cable diameter
mm 5x8RAL-number 7035AvailabilitySU 5 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart
