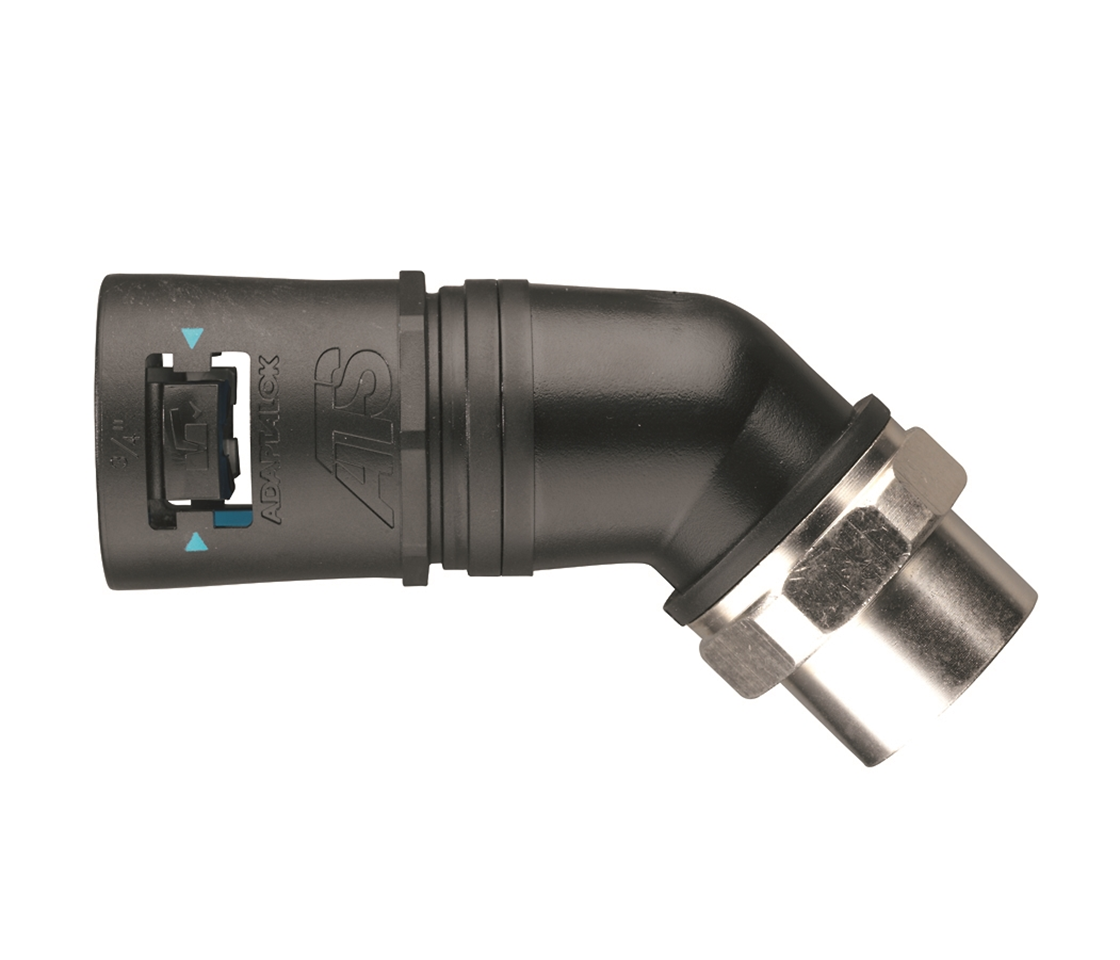

Conduit fitting ATS MS UL 45 IG
Most possible dust and water protection. Swivel male metallic thread. Connector with two hooks for corrugated conduits, safe against vandalism, fast installation. Also available with NPT thread.
series
ATS MS UL 45 IG (metr.)
Material
Polyamide (PA)
Thread material
Brass
Thread type
Metric
Type of connection
Thread
Construction type
External thread
Revolving thread
Yes
Model
45°-elbow
Degree of protection (IP)
IP68
Halogen free
No
UV-resistant
No
Operating temperature
-50…+120 °C
16 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 804136217Nominal diameter
mm 12Thread connection size M16 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804136220Nominal diameter
mm 17Thread connection size M20 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804136225Nominal diameter
mm 23Thread connection size M25 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804136240Nominal diameter
mm 36Thread connection size M40 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804136250Nominal diameter
mm 42Thread connection size M50 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804136251Nominal diameter
mm 48Thread connection size M50 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804136263Nominal diameter
mm 48Thread connection size M63 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804137216Nominal diameter
mm 10Thread connection size M16 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804137217Nominal diameter
mm 12Thread connection size M16 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804137220Nominal diameter
mm 17Thread connection size M20 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804137225Nominal diameter
mm 23Thread connection size M25 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804137232Nominal diameter
mm 29Thread connection size M32 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804137240Nominal diameter
mm 36Thread connection size M40 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804137250Nominal diameter
mm 42Thread connection size M50 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804137251Nominal diameter
mm 48Thread connection size M50 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 804137263Nominal diameter
mm 48Thread connection size M63 x 1.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
