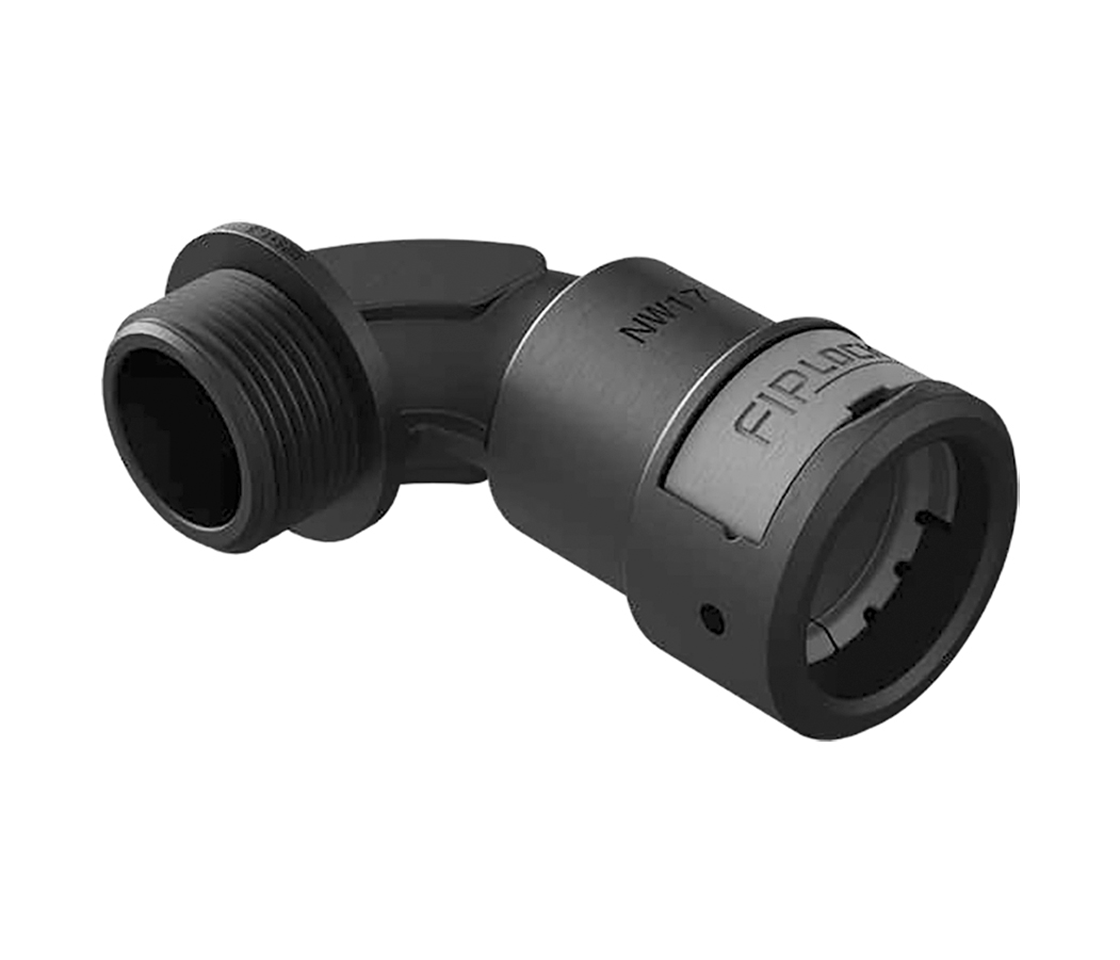

AWPA-M - 90° Cable Protection Fitting, Metric, IP69
The AWPA-M 90° cable protection fitting with metric thread, made from specially modified, halogen-free Polyamide 6, is self-extinguishing and resistant to most common chemical media. Its innovative 360° locking system and internal pipe seals, when used with FIPLOCK corrugated tubes, achieve the highest protection class IP69, ensuring superior protection against dust and water intrusion. UV-resistant and suitable for a temperature range of -50 to +120 °C.
series
AWPA-M
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Metric
Thread
metrisch
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
90°-Bend
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
