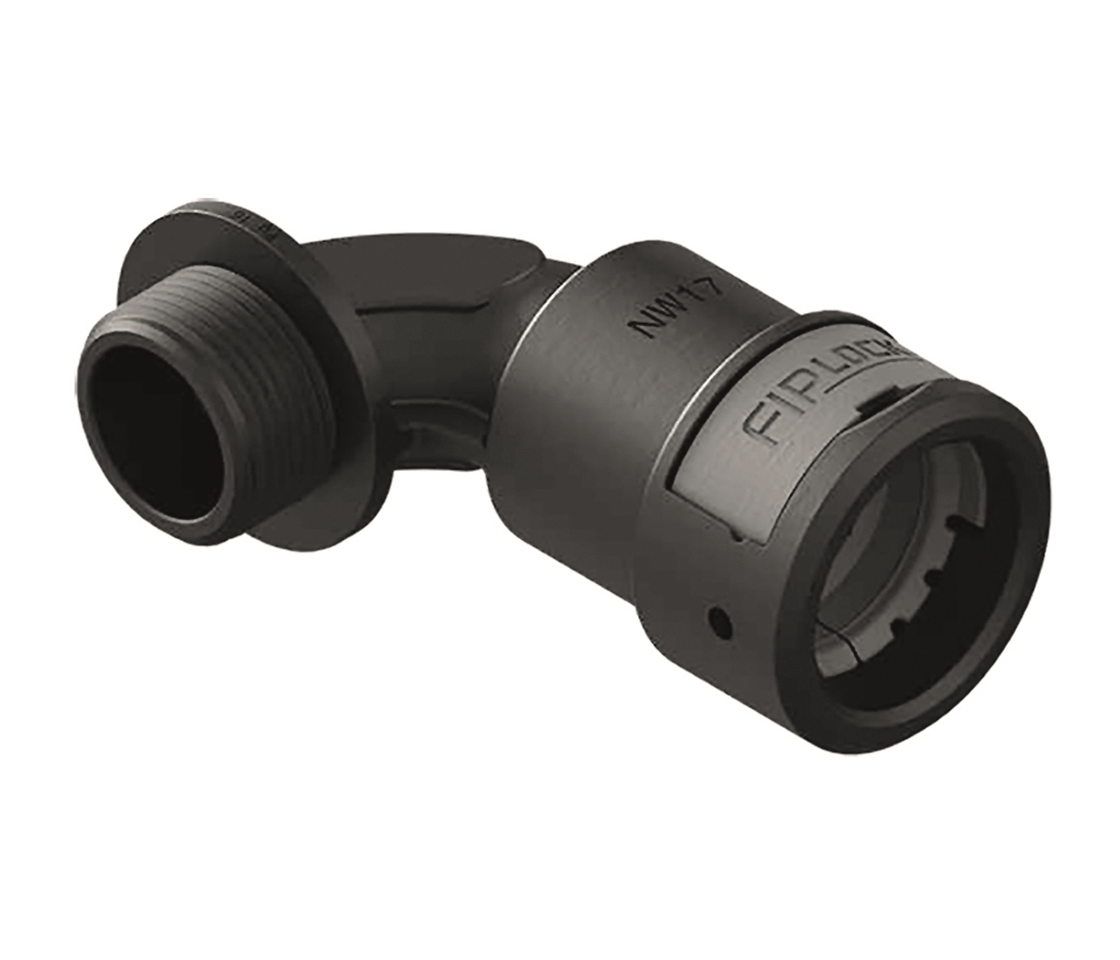

AWPA-PG - arc angle 90°, PG
The one-part 90° cable protection screw connection AWPA with PG connection thread of specially modified, halogen-free polyamide 6 is self-extinguishing and resilient against most common chemical media. Thanks to the newly developed 360° interlocking system and inside conduit seals, AWPA-PG complies with the highest protection class IP69 in combination with our FIPLOCK corrugated tubes.
series
AWPA-PG
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Other
Thread
PG
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
90°-Bend
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
8 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
- Item 880000602Nominal diameter
mm 22Thread connection size PG7Lowest inner diameter hose
mm 7Colour BlackThread length
mm 11Total length
mm 37.5AvailabilitySU 1 PakPrice / SU in CHF excl. VAT - Item 880000603Nominal diameter
mm 22Thread connection size PG7Lowest inner diameter hose
mm 7Colour GreyThread length
mm 11Total length
mm 37.5AvailabilitySU 1 PakPrice / SU in CHF excl. VAT - Item 880000604Nominal diameter
mm 24.7Thread connection size PG9Lowest inner diameter hose
mm 10Colour BlackThread length
mm 11Total length
mm 40.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT - Item 880000605Nominal diameter
mm 24.7Thread connection size PG9Lowest inner diameter hose
mm 10Colour GreyThread length
mm 11Total length
mm 40.2AvailabilitySU 1 PakPrice / SU in CHF excl. VAT - Item 880000606Nominal diameter
mm 28.5Thread connection size PG11Lowest inner diameter hose
mm 11.8Colour BlackThread length
mm 11Total length
mm 44AvailabilitySU 1 PakPrice / SU in CHF excl. VAT - Item 880000607Nominal diameter
mm 28.5Thread connection size PG11Lowest inner diameter hose
mm 11.8Colour GreyThread length
mm 11Total length
mm 44AvailabilitySU 1 PakPrice / SU in CHF excl. VAT - Item 880000608Nominal diameter
mm 28.5Thread connection size PG13.5Lowest inner diameter hose
mm 12.8Colour BlackThread length
mm 11Total length
mm 44AvailabilitySU 1 PakPrice / SU in CHF excl. VAT - Item 880000609Nominal diameter
mm 28.5Thread connection size PG13.5Lowest inner diameter hose
mm 12.8Colour GreyThread length
mm 11Total length
mm 44AvailabilitySU 1 PakPrice / SU in CHF excl. VAT
