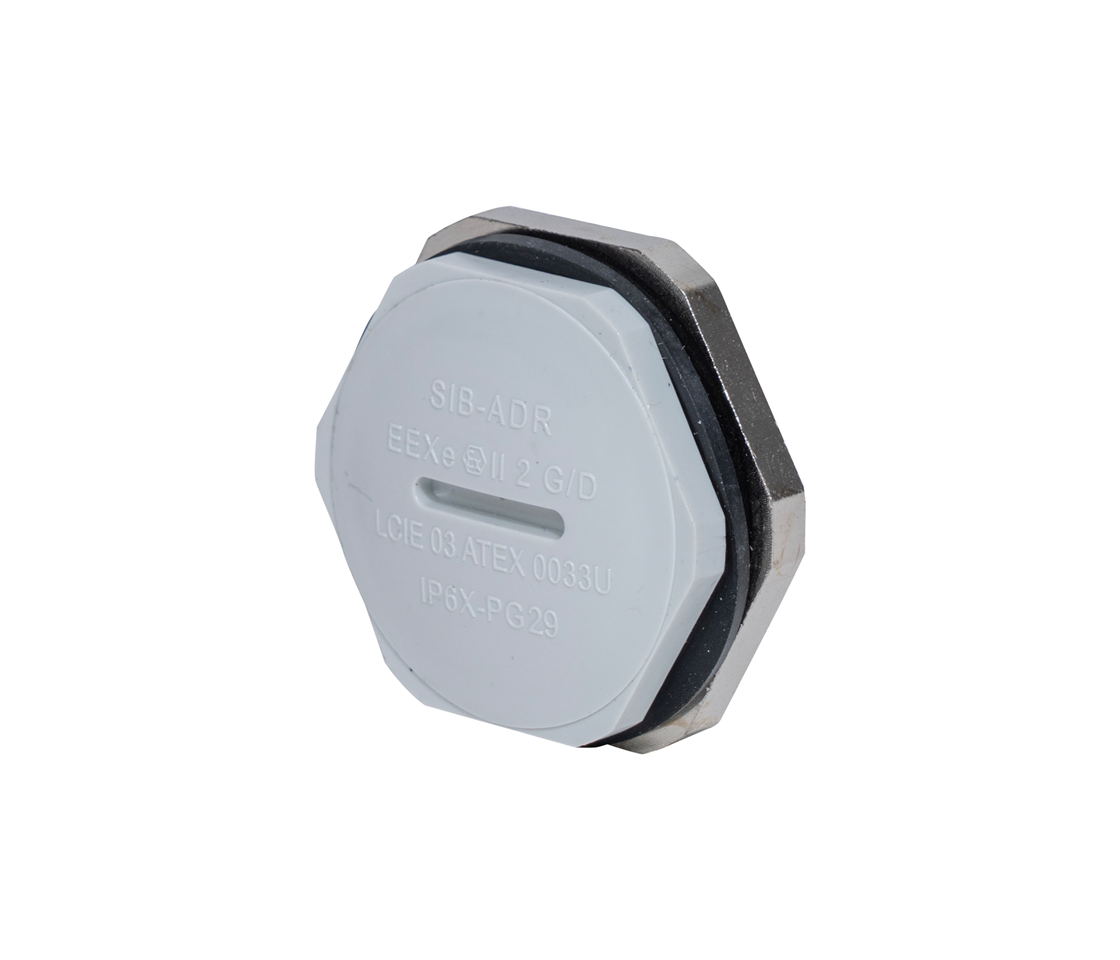

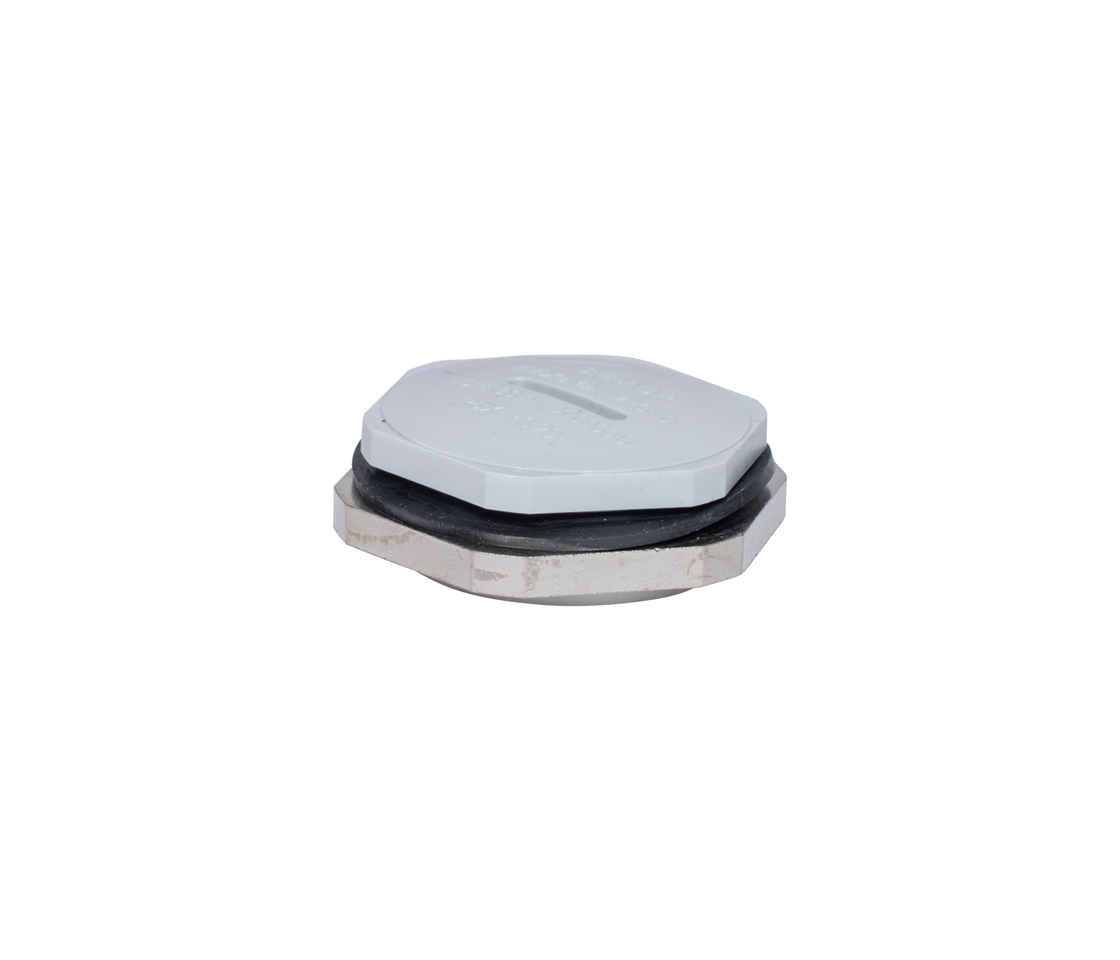

Dome plug BLISTO PA hexagonal (PG), ATEX
Discover the BLISTO PA ATEX Blind Plug by PLICA, a specialized and robust solution for demanding environments. Made from polyamide (PA), this blind plug is oil and acid-resistant, making it perfectly suited for use in explosion-prone areas (Zone 1, 2, 21, and 22). The construction includes a brass locknut and a flat neoprene seal, ensuring high safety and reliability. The blind plug is designed for a wide operating temperature range of -35 to +95 °C and meets the IP 68 protection standard. Ideal for use in electrical engineering, mechanical engineering, and other industrial areas where high safety and resistance requirements are paramount.
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Halogen free
Yes
Glass-fibre reinforced
No
Shock resistant
No
Explosion-tested version
Yes
For Ex-zone gas
1, 2
For Ex-Zone dust
21, 22
Operating temperature
-35...+95 °C
series
BLISTO-PA-ATEX(PG)
temperature range
-35...+95
Fire behavior
flame resistance UL 94 V2
IP protection
IP 68
standard
DIN 40430-NFC 68311
9 Artikel
Reset filters
Filter
Item
Thread type
Nominal thread size metric/PG
Nominal thread size inch/gas pipe thread
Pitch thread mm
Colour
RAL-number
thread length
overall length/height
diameter
Key-width
Outer diameter
inner diameter
overall length
heel thickness
Availability
SU
Price / SUexcl. VAT
- Item 907007094Thread type PGNominal thread size metric/PG 9Nominal thread size inch/gas pipe threadPitch thread
mm 1.41Colour GreyRAL-number 1.7035thread length 10overall length/height 13.4diameterKey-width 19Outer diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907007116Thread type PGNominal thread size metric/PG 11Nominal thread size inch/gas pipe threadPitch thread
mm 1.41Colour GreyRAL-number 1.7035thread length 10overall length/height 13.8diameterKey-width 22Outer diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907007132Thread type PGNominal thread size metric/PG 13.5Nominal thread size inch/gas pipe threadPitch thread
mm 1.41Colour GreyRAL-number 1.7035thread length 10overall length/height 13.5diameterKey-width 24Outer diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907007167Thread type PGNominal thread size metric/PG 16Nominal thread size inch/gas pipe threadPitch thread
mm 1.41Colour GreyRAL-number 1.7035thread length 10overall length/height 13.5diameterKey-width 27Outer diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907007213Thread type PGNominal thread size metric/PG 21Nominal thread size inch/gas pipe threadPitch thread
mm 1.41Colour GreyRAL-number 1.7035thread length 12overall length/height 16.5diameterKey-width 32Outer diameterinner diameteroverall lengthheel thicknessAvailabilitySU 25 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907007299Thread type PGNominal thread size metric/PG 29Nominal thread size inch/gas pipe threadPitch thread
mm 1.587Colour GreyRAL-number 1.7035thread length 12overall length/height 18diameterKey-width 41Outer diameterinner diameteroverall lengthheel thicknessAvailabilitySU 25 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907007361Thread type PGNominal thread size metric/PG 36Nominal thread size inch/gas pipe threadPitch thread
mm 1.587Colour GreyRAL-number 1.7035thread length 14overall length/height 19.5diameterKey-width 55Outer diameterinner diameteroverall lengthheel thicknessAvailabilitySU 25 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907007421Thread type PGNominal thread size metric/PG 42Nominal thread size inch/gas pipe threadPitch thread
mm 1.587Colour GreyRAL-number 1.7035thread length 16overall length/height 23.5diameterKey-width 60Outer diameterinner diameteroverall lengthheel thicknessAvailabilitySU 25 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907007485Thread type PGNominal thread size metric/PG 48Nominal thread size inch/gas pipe threadPitch thread
mm 1.588Colour GreyRAL-number 1.7035thread length 16overall length/height 25.5diameterKey-width 65Outer diameterinner diameteroverall lengthheel thicknessAvailabilitySU 25 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
