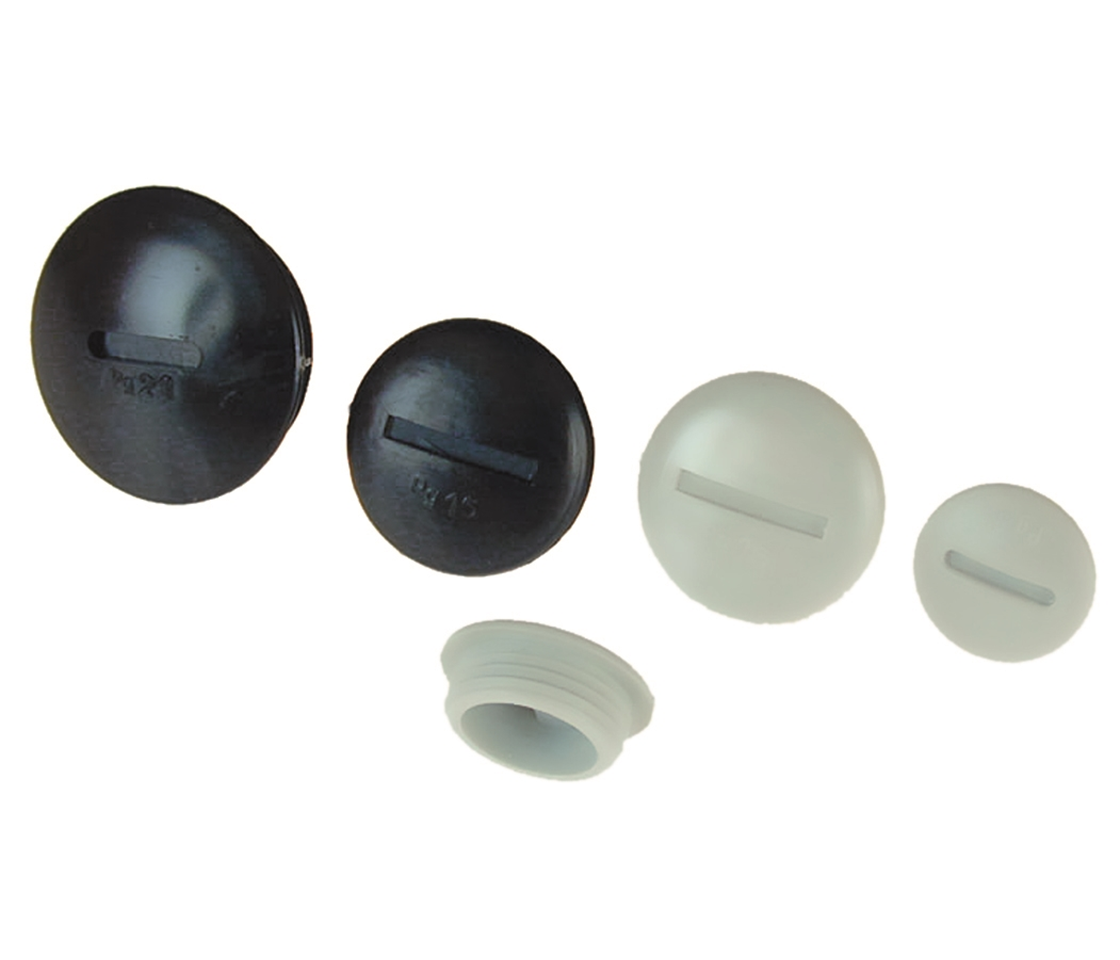

Dome plug PA GFK (M)
Of fibre-glass reinforced polyamide. Excellent resistance to acids, alkalis, seawater, gasoline and mineral oils. Liquidtight due to the conical shape of the flange.
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Halogen free
Yes
Glass-fibre reinforced
Yes
Shock resistant
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
Operating temperature
-30...+120 °C
series
BLISTO-PA-GFK(M)
temperature range
-30...+120
Fire behavior
Self estinguishing UL 94 V0
IP protection
IP 68
standard
EN 60423
22 Artikel
Reset filters
Filter
Item
Thread type
Nominal thread size metric/PG
Nominal thread size inch/gas pipe thread
Pitch thread mm
Colour
RAL-number
thread length
overall length/height
diameter
Key-width
Outer diameter
inner diameter
overall length
heel thickness
Availability
SU
Price / SUexcl. VAT
- Item 907215612Thread type MetricNominal thread size metric/PG 12Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 1.7035thread length 6overall length/height 10diameter 15Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907215616Thread type MetricNominal thread size metric/PG 16Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7035thread length 7overall length/height 11diameter 20Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907215619Thread type MetricNominal thread size metric/PG 20Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7001thread length 7overall length/height 12diameter 24Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907215620Thread type MetricNominal thread size metric/PG 20Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7035thread length 7overall length/height 12.5diameter 24Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907215625Thread type MetricNominal thread size metric/PG 25Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7035thread length 8overall length/height 11diameter 32Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907215632Thread type MetricNominal thread size metric/PG 32Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7035thread length 11overall length/height 16diameter 37Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907215640Thread type MetricNominal thread size metric/PG 40Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7035thread length 10overall length/height 14diameter 48Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907215650Thread type MetricNominal thread size metric/PG 50Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 1.7035thread length 12overall length/height 17diameter 55Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907215663Thread type MetricNominal thread size metric/PG 63Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7035thread length 15overall length/height 19diameter 69.5Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 5 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907216712Thread type MetricNominal thread size metric/PG 12Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour BlackRAL-number 9005thread length 6overall length/height 10diameter 15Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907216716Thread type MetricNominal thread size metric/PG 16Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour BlackRAL-number 1.9005thread length 7overall length/height 11diameter 20Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907216720Thread type MetricNominal thread size metric/PG 20Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour BlackRAL-number 9005thread length 7overall length/height 12.5diameter 24Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907216725Thread type MetricNominal thread size metric/PG 25Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour BlackRAL-number 9005thread length 10overall length/height 16diameter 30Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907216732Thread type MetricNominal thread size metric/PG 32Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour BlackRAL-number 9005thread length 11overall length/height 16diameter 37Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907216740Thread type MetricNominal thread size metric/PG 40Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour BlackRAL-number 9005thread length 13overall length/height 18diameter 46Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907216750Thread type MetricNominal thread size metric/PG 50Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour BlackRAL-number 9005thread length 14overall length/height 19diameter 56Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 907216763Thread type MetricNominal thread size metric/PG 63Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour BlackRAL-number 1.9005thread length 15overall length/height 19diameter 69.5Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 5 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 935370100Thread type MetricNominal thread size metric/PG 25Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7001thread length 10overall length/height 16diameter 30Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 935370252Thread type MetricNominal thread size metric/PG 16Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7001thread length 7overall length/height 11diameter 20Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 935370277Thread type MetricNominal thread size metric/PG 50Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 1.7001thread length 14overall length/height 19diameter 56Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 935370342Thread type MetricNominal thread size metric/PG 12Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7001thread length 6overall length/height 10diameter 15Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 935370343Thread type MetricNominal thread size metric/PG 40Nominal thread size inch/gas pipe threadPitch thread
mm 1.5Colour GreyRAL-number 7001thread length 13overall length/height 18diameter 46Key-widthOuter diameterinner diameteroverall lengthheel thicknessAvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
