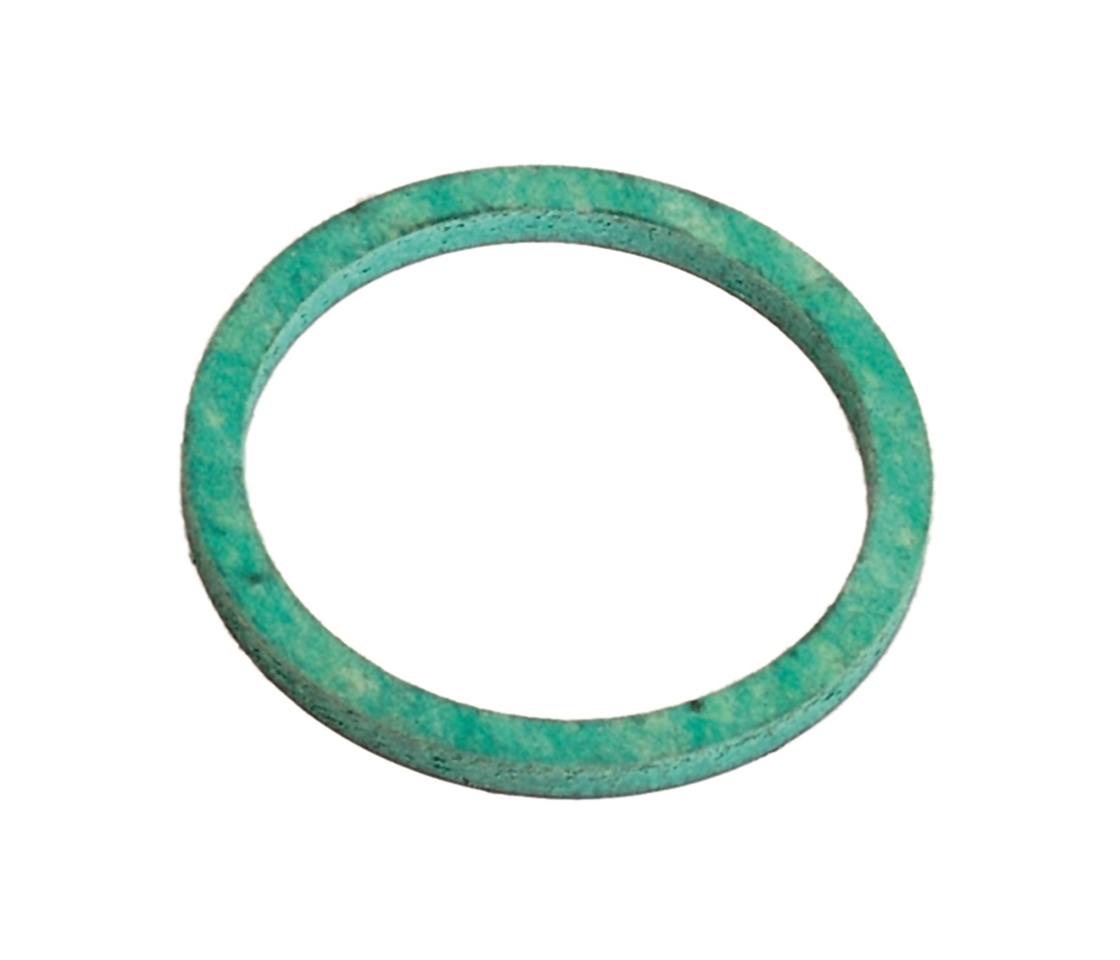

Seal ring FA
Discover the DIRI FA Connection Thread Sealing Ring by PLICA, an effective flat gasket for your cable management needs. This sealing ring is made from rubber and another material, providing high resistance to oils, acids, and weak alkalis. It is available in various metric sizes and offers high temperature resistance from -55 to +300 °C. The DIRI FA sealing ring is green in color, not halogen-free, and not UV-resistant. It also does not provide EMV protection, which should be considered when selecting for specific applications. Its flat shape makes it a discreet and effective solution for your cable gland requirements.
Material
Rubber
Material quality
Other
Shape
Flat
series
DIRI-FA(M)
colour
Grün
Cuttable
No
standard
EN 60423
Halogen free
No
UV-resistant
No
temperature resistance
-55...+300
Other material
Asbestfreier Werkstoff
EMC protected
No
6 Artikel
Reset filters
Filter
Item
Outer diameter mm
Inner diameter mm
Thickness mm
Suitable for thread size (metric)
Suitable for thread size PG
clamping area
Availability
SU
Price / SU in CHFexcl. VAT
- Item 908113016Outer diameter
mm 19.9Inner diameter
mm 16Thickness
mm 2Suitable for thread size (metric) 16Suitable for thread size PGclamping areaAvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 908113020Outer diameter
mm 24Inner diameter
mm 20Thickness
mm 2Suitable for thread size (metric) 20Suitable for thread size PGclamping areaAvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 908113025Outer diameter
mm 30Inner diameter
mm 25Thickness
mm 3Suitable for thread size (metric) 25Suitable for thread size PGclamping areaAvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 908113032Outer diameter
mm 38Inner diameter
mm 32Thickness
mm 3Suitable for thread size (metric) 32Suitable for thread size PGclamping areaAvailabilitySU 100 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 908113040Outer diameter
mm 47Inner diameter
mm 40Thickness
mm 3Suitable for thread size (metric) 40Suitable for thread size PGclamping areaAvailabilitySU 50 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 908113050Outer diameter
mm 57Inner diameter
mm 50Thickness
mm 3Suitable for thread size (metric) 50Suitable for thread size PGclamping areaAvailabilitySU 50 StkPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart
