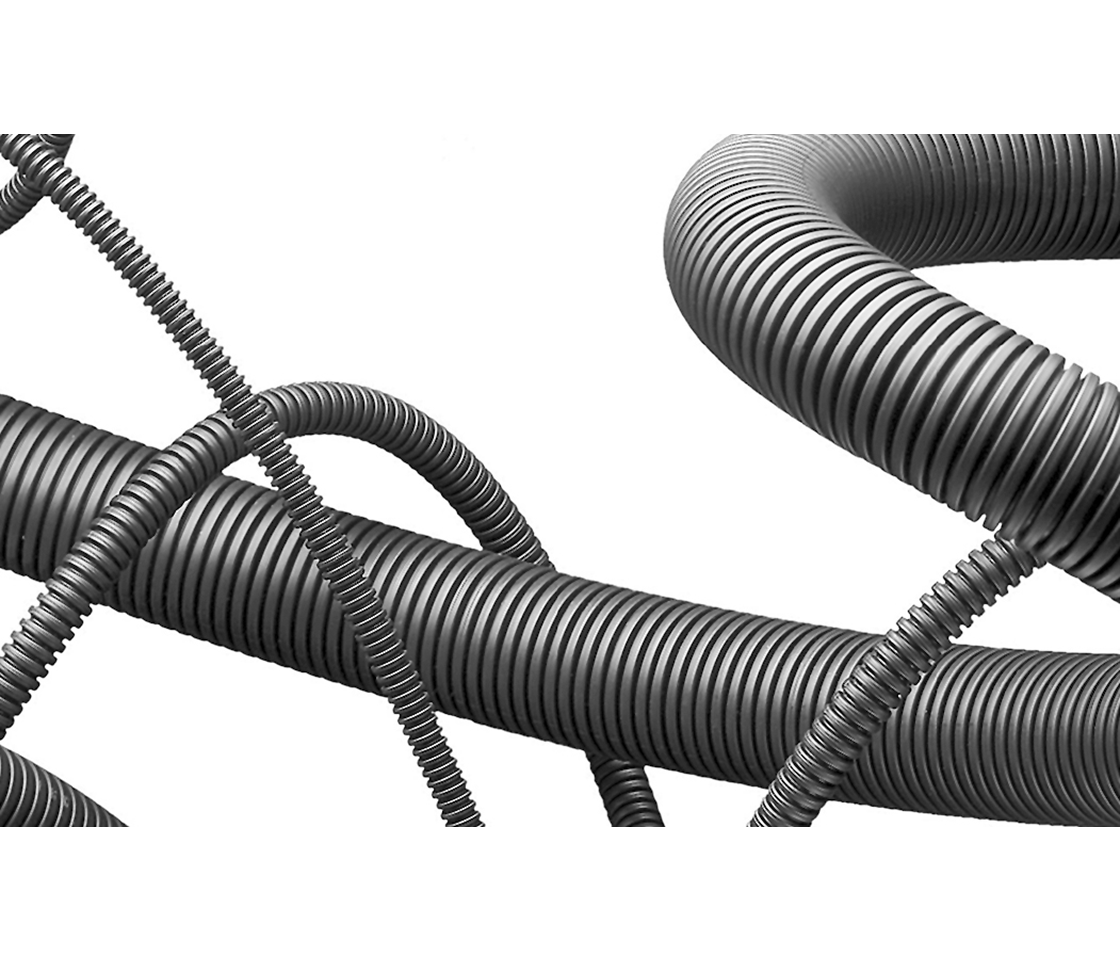

Plica FPAN Polyamide Conduit – Versatile & High-Performance
The plica FPAN conduit made from specially formulated Polyamide 6 is perfect for a wide range of cable protection applications. It exhibits excellent impact resistance, compressive strength, and good flexibility, meeting the most demanding technical requirements in machinery, equipment, and installation construction, as well as in railway technology. Available in both fine profile (F) and coarse profile (C), the FPAN conduit offers optimal adaptability.
Material
Polyamide 6
Sheathing material
Not sheathed
Lengthwise slotted
No
Closable (two-part)
No
Operating temperature
-45...+120 °C
Compressive strength
320 N
Fire resistance according to UL94
V2
Flame accelerating
No
UV resistant
Yes
Oil resistant
No
Halogen free
Yes
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
Yes
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
39 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 880000879Nominal diameter
mm 17Outer diameter
mm 21.1Inner diameter
mm 16.1Bending radius, static
mm 35Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000880Nominal diameter
mm 17Outer diameter
mm 21.1Inner diameter
mm 16.1Bending radius, static
mm 35Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000881Nominal diameter
mm 17Outer diameter
mm 21.1Inner diameter
mm 16.1Bending radius, static
mm 35Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000883Nominal diameter
mm 23Outer diameter
mm 28.5Inner diameter
mm 22Bending radius, static
mm 40Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000884Nominal diameter
mm 23Outer diameter
mm 28.5Inner diameter
mm 22Bending radius, static
mm 40Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000886Nominal diameter
mm 29Outer diameter
mm 34.7Inner diameter
mm 28.3Bending radius, static
mm 50Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000887Nominal diameter
mm 29Outer diameter
mm 34.7Inner diameter
mm 28.3Bending radius, static
mm 50Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000889Nominal diameter
mm 36Outer diameter
mm 42.3Inner diameter
mm 36Bending radius, static
mm 55Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000890Nominal diameter
mm 36Outer diameter
mm 42.3Inner diameter
mm 36Bending radius, static
mm 55Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000892Nominal diameter
mm 48Outer diameter
mm 54.4Inner diameter
mm 47Bending radius, static
mm 65Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000893Nominal diameter
mm 48Outer diameter
mm 54.4Inner diameter
mm 47Bending radius, static
mm 65Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000894Nominal diameter
mm 97Outer diameter
mm 10Inner diameter
mm 6.2Bending radius, static
mm 15Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000895Nominal diameter
mm 7Outer diameter
mm 10Inner diameter
mm 6.2Bending radius, static
mm 15Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000896Nominal diameter
mm 7Outer diameter
mm 10Inner diameter
mm 6.2Bending radius, static
mm 15Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000898Nominal diameter
mm 10Outer diameter
mm 12.8Inner diameter
mm 9.6Bending radius, static
mm 20Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000899Nominal diameter
mm 10Outer diameter
mm 12.8Inner diameter
mm 9.6Bending radius, static
mm 20Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000901Nominal diameter
mm 12Outer diameter
mm 15.7Inner diameter
mm 12Bending radius, static
mm 30Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000902Nominal diameter
mm 12Outer diameter
mm 15.7Inner diameter
mm 12Bending radius, static
mm 30Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000904Nominal diameter
mm 17Outer diameter
mm 21.1Inner diameter
mm 16.6Bending radius, static
mm 35Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000905Nominal diameter
mm 17Outer diameter
mm 21.1Inner diameter
mm 16.6Bending radius, static
mm 35Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000907Nominal diameter
mm 23Outer diameter
mm 28.4Inner diameter
mm 22.6Bending radius, static
mm 40Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000908Nominal diameter
mm 23Outer diameter
mm 28.4Inner diameter
mm 22.6Bending radius, static
mm 40Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000910Nominal diameter
mm 29Outer diameter
mm 34.5Inner diameter
mm 29Bending radius, static
mm 50Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000911Nominal diameter
mm 29Outer diameter
mm 34.5Inner diameter
mm 29Bending radius, static
mm 50Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000913Nominal diameter
mm 36Outer diameter
mm 42.4Inner diameter
mm 36.5Bending radius, static
mm 55Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000914Nominal diameter
mm 36Outer diameter
mm 42.4Inner diameter
mm 36.5Bending radius, static
mm 55Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000916Nominal diameter
mm 48Outer diameter
mm 54.4Inner diameter
mm 47.5Bending radius, static
mm 65Colour GreyAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000917Nominal diameter
mm 48Outer diameter
mm 54.4Inner diameter
mm 47.5Bending radius, static
mm 65Colour ColourlessAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001368Nominal diameter
mm 23Outer diameter
mm 28.5Inner diameter
mm 22Bending radius, static
mm 40Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001369Nominal diameter
mm 29Outer diameter
mm 34.7Inner diameter
mm 28.3Bending radius, static
mm 50Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001370Nominal diameter
mm 36Outer diameter
mm 42.3Inner diameter
mm 36Bending radius, static
mm 55Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001371Nominal diameter
mm 48Outer diameter
mm 54.4Inner diameter
mm 47Bending radius, static
mm 65Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATCampaignEtiketten druckenAdd item to the shopping cart - Item 880001372Nominal diameter
mm 10Outer diameter
mm 12.8Inner diameter
mm 9.6Bending radius, static
mm 20Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001373Nominal diameter
mm 12Outer diameter
mm 15.7Inner diameter
mm 12Bending radius, static
mm 30Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001374Nominal diameter
mm 17Outer diameter
mm 21.1Inner diameter
mm 16.6Bending radius, static
mm 35Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001375Nominal diameter
mm 23Outer diameter
mm 28.4Inner diameter
mm 22.6Bending radius, static
mm 40Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001376Nominal diameter
mm 29Outer diameter
mm 34.5Inner diameter
mm 29Bending radius, static
mm 50Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001377Nominal diameter
mm 40Outer diameter
mm 42.4Inner diameter
mm 36.5Bending radius, static
mm 55Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001378Nominal diameter
mm 48Outer diameter
mm 54.4Inner diameter
mm 47.5Bending radius, static
mm 65Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
Were you unable to find what you were looking for? We will gladly try and get the product you are looking for for you.
To the procurement serviceAccessories
