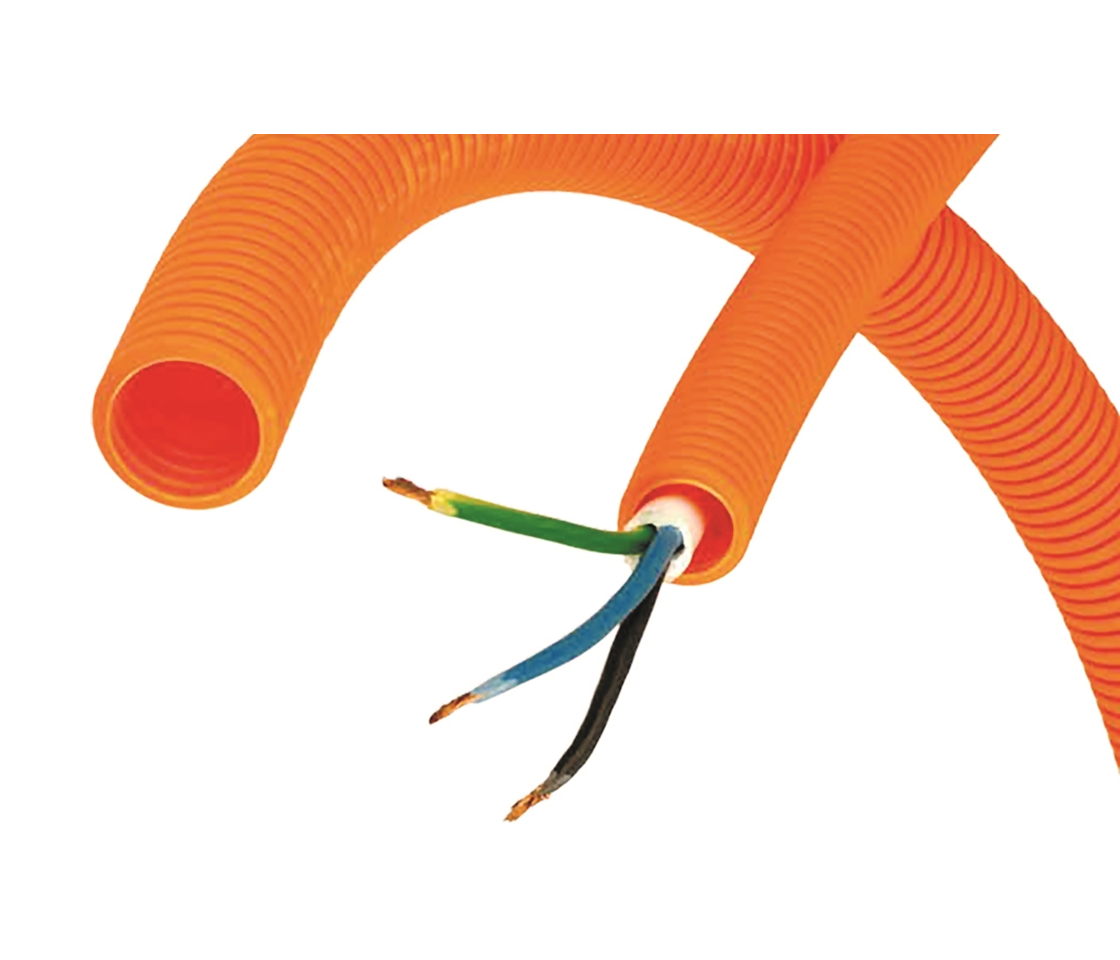

tube Corrugated 50 m FIPLOCK PP MOD BS NW07, fine, orange
The plica FPPS-O conduit made from high-quality specially formulated Polypropylene is ideal for applications where cables or conduits need to be specifically or distinctly marked. The product is self-extinguishing, halogen-free, and cadmium-free, with excellent chemical resistance, making it extremely versatile. Available in fine profile (F), the FPPS-O conduit offers flexibility and reliability. It is UV-stable, with an operating temperature range of -40 to +105 °C, and complies with the UL 94 V2 fire safety standard.
Material
Polypropylene (PP)
Sheathing material
Not sheathed
Lengthwise slotted
No
Closable (two-part)
No
Operating temperature
-40...+105 °C
Compressive strength
125 N
Fire resistance according to UL94
V2
Flame accelerating
No
UV resistant
Yes
Oil resistant
No
Halogen free
Yes
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
No
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
1 Artikel
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 880001082Nominal diameter
mm 7Outer diameter
mm 10Inner diameter
mm 6.8Bending radius, static
mm 15Colour OrangeAvailabilitySU 1 RoPrice / SU excl. VAT
This item is available in 7 other versions.
