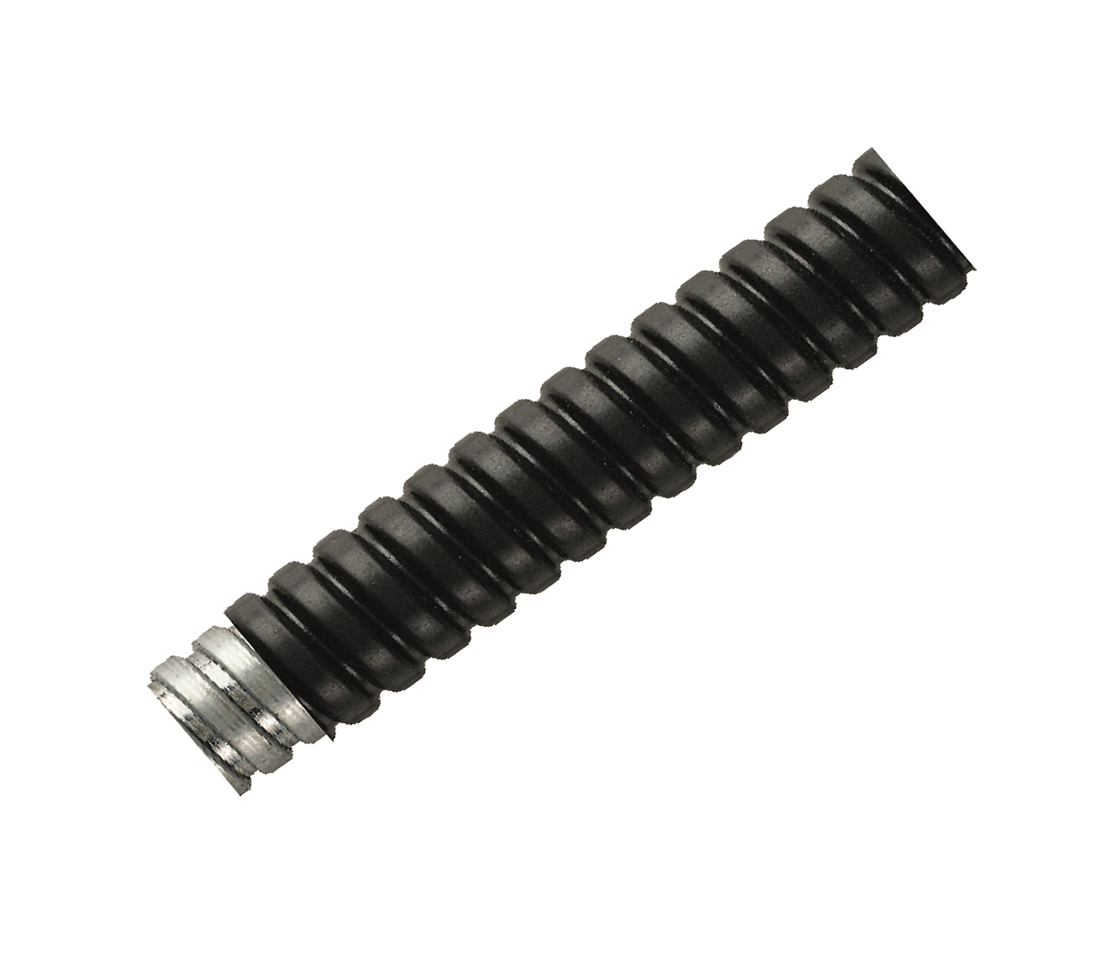

FSU - Flexible Metal Conduit by Plica
Discover the flexible metal conduit plica FSU 37367. Perfectly suited for challenging environments, this conduit offers reliable protection and optimal flexibility. Ideal for industrial applications.
Material
Steel
Surface protection
Galvanized
Sheathing material 1st coating
Polyvinyl chloride (PVC)
Sheathing material 2nd coating (exterior)
Not sheathed
Sealing
No sealing
Operating temperature
-15...+70 °C
Degree of protection (IP)
IP65
Flame accelerating
No
Suitable for EX-applications
No
Bending strength
Flexible
Approved according to FI
No
With approval according to UL
No
UV-resistant
Yes
operating temperatur
-15…+70
11 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Wall thickness mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 860000046Nominal diameter
mm 10Outer diameter
mm 10Inner diameter
mm 6.8Wall thickness
mm 1.6Bending radius, static
mm 25Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000047Nominal diameter
mm 12Outer diameter
mm 14Inner diameter
mm 10.2Wall thickness
mm 1.9Bending radius, static
mm 40Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000048Nominal diameter
mm 16Outer diameter
mm 17Inner diameter
mm 13Wall thickness
mm 2Bending radius, static
mm 45Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000049Nominal diameter
mm 20Outer diameter
mm 21.5Inner diameter
mm 16.9Wall thickness
mm 2.3Bending radius, static
mm 50Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000050Nominal diameter
mm 25Outer diameter
mm 26Inner diameter
mm 21.1Wall thickness
mm 2.45Bending radius, static
mm 60Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000051Nominal diameter
mm 32Outer diameter
mm 34Inner diameter
mm 28.1Wall thickness
mm 2.95Bending radius, static
mm 90Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000052Nominal diameter
mm 40Outer diameter
mm 44.5Inner diameter
mm 37.6Wall thickness
mm 3.45Bending radius, static
mm 120Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000053Nominal diameter
mm 50Outer diameter
mm 55Inner diameter
mm 48.4Wall thickness
mm 3.3Bending radius, static
mm 130Colour BlackAvailabilitySU 10 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000054Nominal diameter
mm 63Outer diameter
mm 64.5Inner diameter
mm 57.5Wall thickness
mm 3.5Bending radius, static
mm 160Colour BlackAvailabilitySU 10 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000055Nominal diameter
mm 50Outer diameter
mm 55Inner diameter
mm 48.4Wall thickness
mm 3.3Bending radius, static
mm 130Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000056Nominal diameter
mm 75Outer diameter
mm 79Inner diameter
mm 70Wall thickness
mm 4.5Bending radius, static
mm 190Colour BlackAvailabilitySU 10 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
