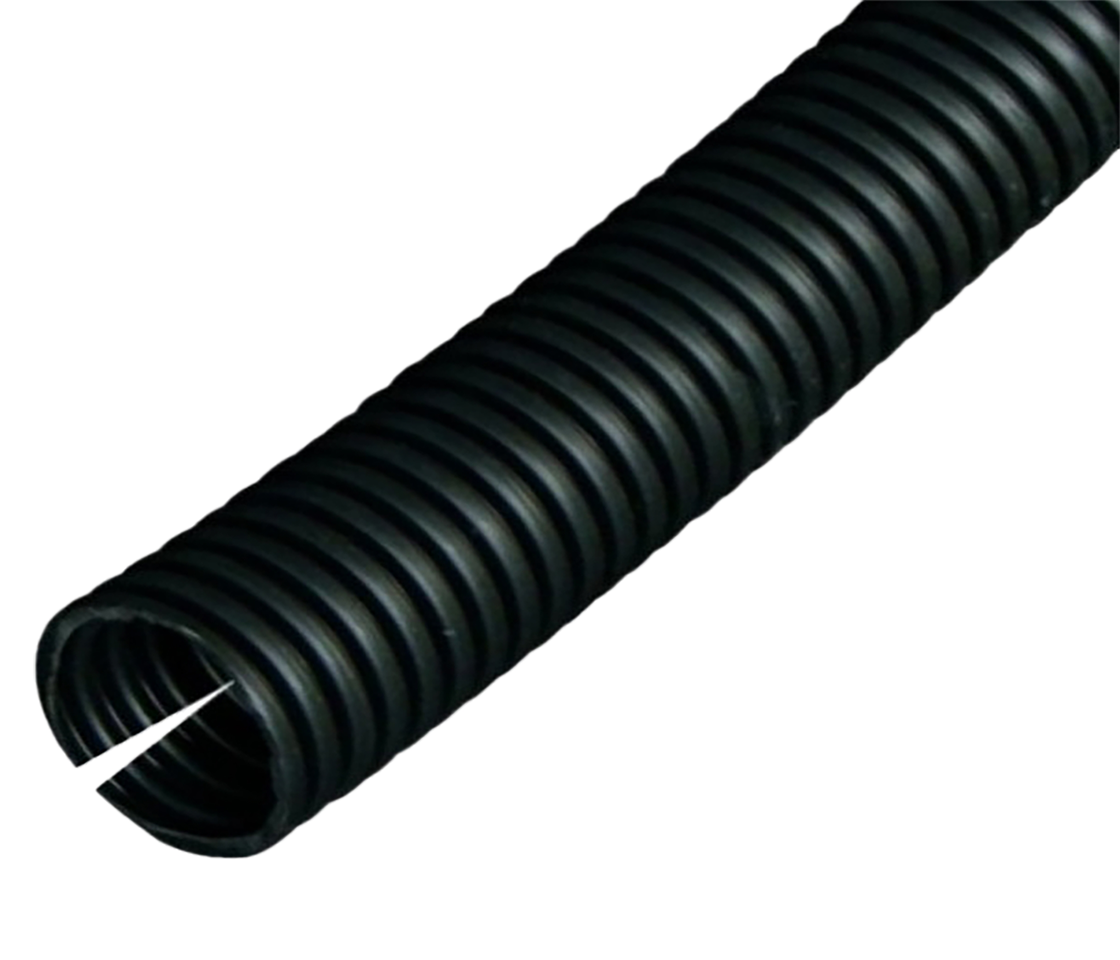

Corrugated hose LIGHTFLEX
Lightflex slotted plica cable protection tubes offer an efficient solution for securing and organizing cables. Made from high-quality materials, these flexible and sturdy tubes are ideal for long-term use. Easy to handle and adaptable, Lightflex slotted plica tubes are a must-have for effective cable management.
Material
Polyamide 6
Sheathing material
Not sheathed
Lengthwise slotted
Yes
Closable (two-part)
No
Operating temperature
-40...+120 °C
Compressive strength
350 N
Fire resistance according to UL94
HB
Flame accelerating
No
UV resistant
Yes
Oil resistant
Yes
Halogen free
Yes
Degree of protection (IP)
Other
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
No
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
3 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 8018100037Nominal diameter
mm 7.5Outer diameter
mm 10Inner diameter
mm 6.8Bending radius, static
mm 15Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 8018100038Nominal diameter
mm 13Outer diameter
mm 15.8Inner diameter
mm 12.8Bending radius, static
mm 35Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 8018100040Nominal diameter
mm 19Outer diameter
mm 23.9Inner diameter
mm 19.4Bending radius, static
mm 50Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
Were you unable to find what you were looking for? We will gladly try and get the product you are looking for for you.
To the procurement serviceAccessories
