tube Corrugated 25 m FIPLOCK HD, PA6 MOD V0 NW 48, coarse, grey

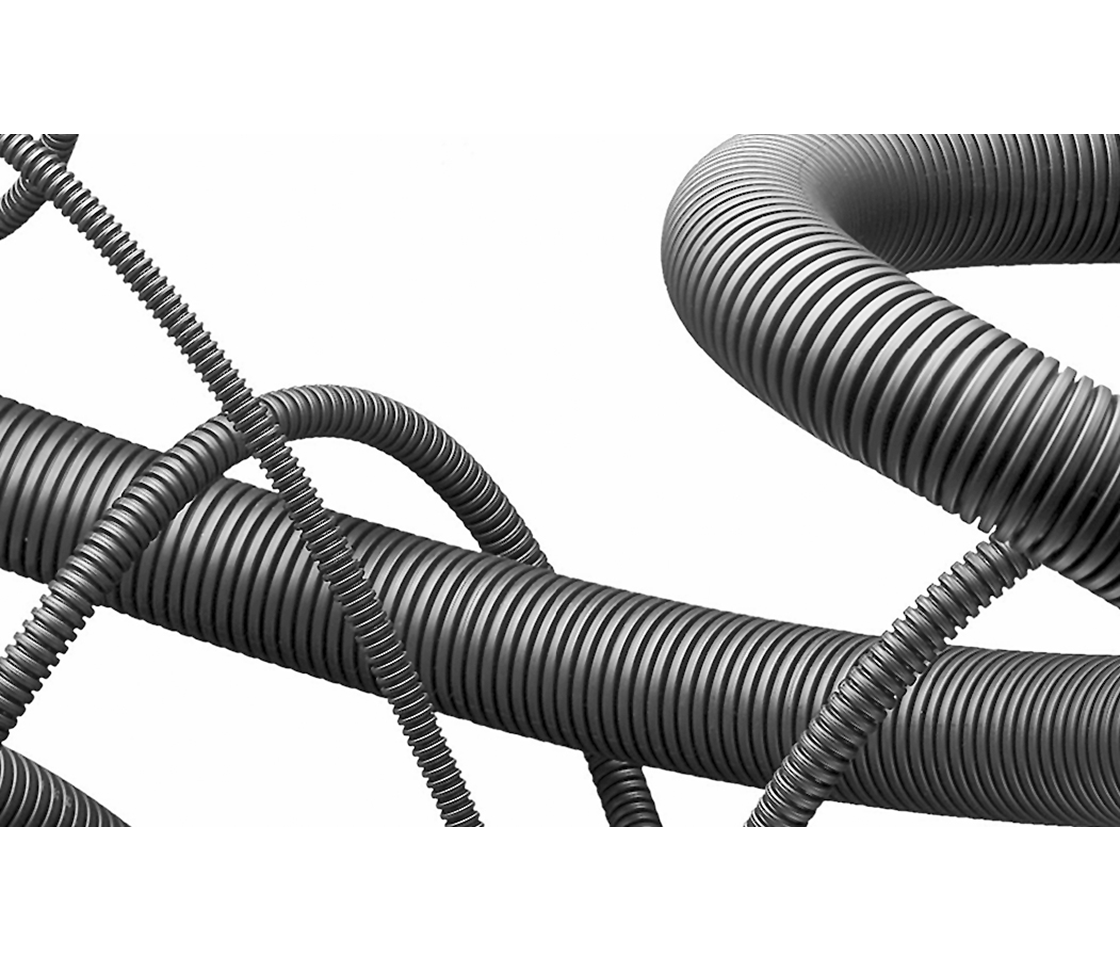

The plica HPAF conduit made from Polyamide 6 with enhanced fire protection meets the highest fire protection requirements. It stands out with excellent self-extinguishing properties and low smoke emission. The conduit is UV-stable, halogen-free, and flexible in bending. With certificates for REACH, ROHS, CE, and ZUG_EN 45545, it provides maximum safety. (C) => Coarse profile C.
Material
Polyamide 6
Sheathing material
Not sheathed
Lengthwise slotted
No
Closable (two-part)
No
Operating temperature
-45...+120 °C
Compressive strength
320 N
Fire resistance according to UL94
V0
Flame accelerating
No
UV resistant
Yes
Oil resistant
No
Halogen free
Yes
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
No
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
1 Artikel
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 880001119Nominal diameter
mm 48Outer diameter
mm 54.2Inner diameter
mm 46.7Bending radius, static
mm 70Colour GreyAvailabilitySU 1 RoPrice / SU excl. VAT
This item is available in 9 other versions.
