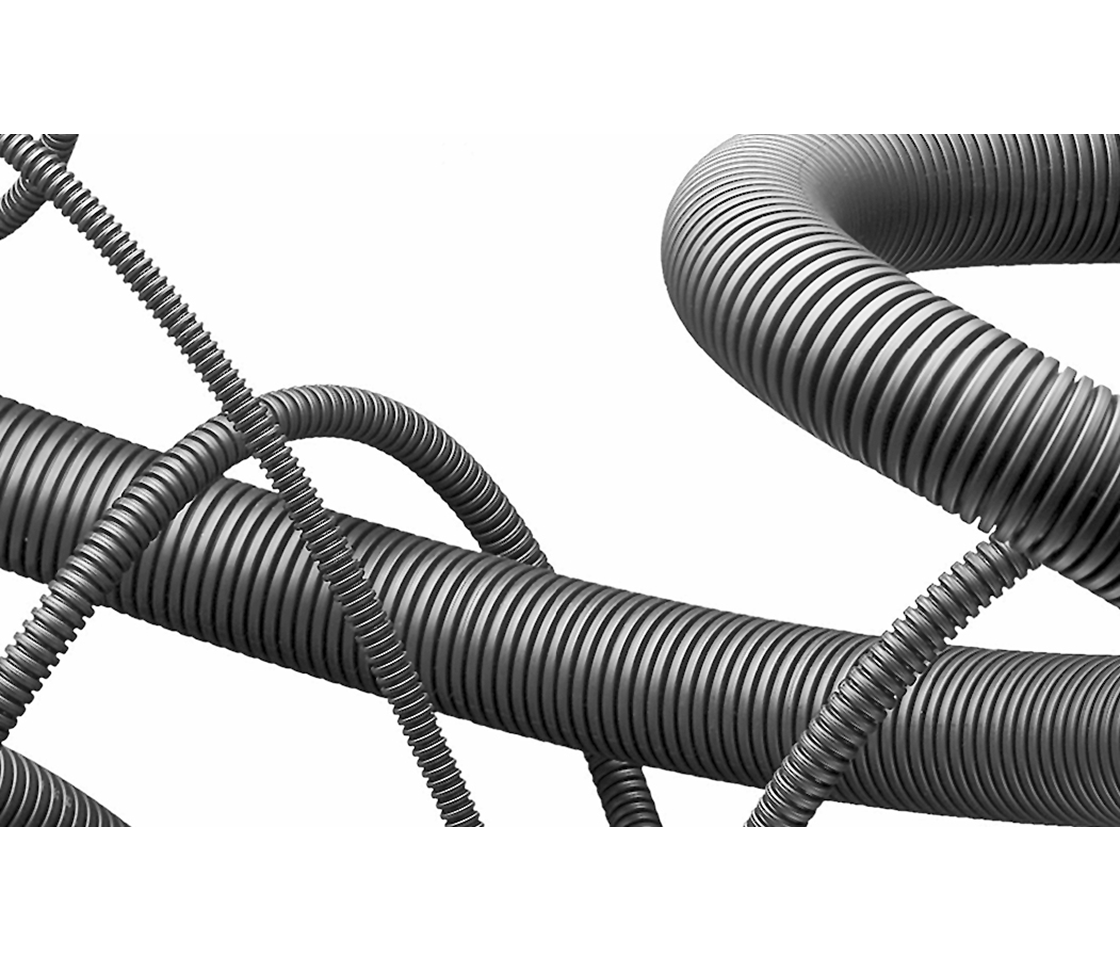

The corrugated conduit Plica HPDF made of polyamide 12 - self-extinguishing UL94 V0
The heavy duty conduit HPDF is made from highly flame retarded specially modified Polyamide 12. It is suitable for cable protection applications where low fire hazard is mandatory. With it’s very good complementary mechanical performances this conduit suits technically high demanding applications such like rolling stock and public transport equipment in general. (F) => Fine profile F. (C) => Coarse profile C.
Material
Polyamide 12
Sheathing material
Not sheathed
Lengthwise slotted
No
Closable (two-part)
No
Operating temperature
-50...+110 °C
Compressive strength
750 N
Fire resistance according to UL94
V0
Flame accelerating
No
UV resistant
Yes
Oil resistant
No
Halogen free
Yes
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
Yes
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
