Hybraplica Duplex PP
![Hybraplica Duplex PP](/CatCache/catcache.2/pictures/ZZ-PRD-22/ZZ-PRD-22_L_1.jpg)

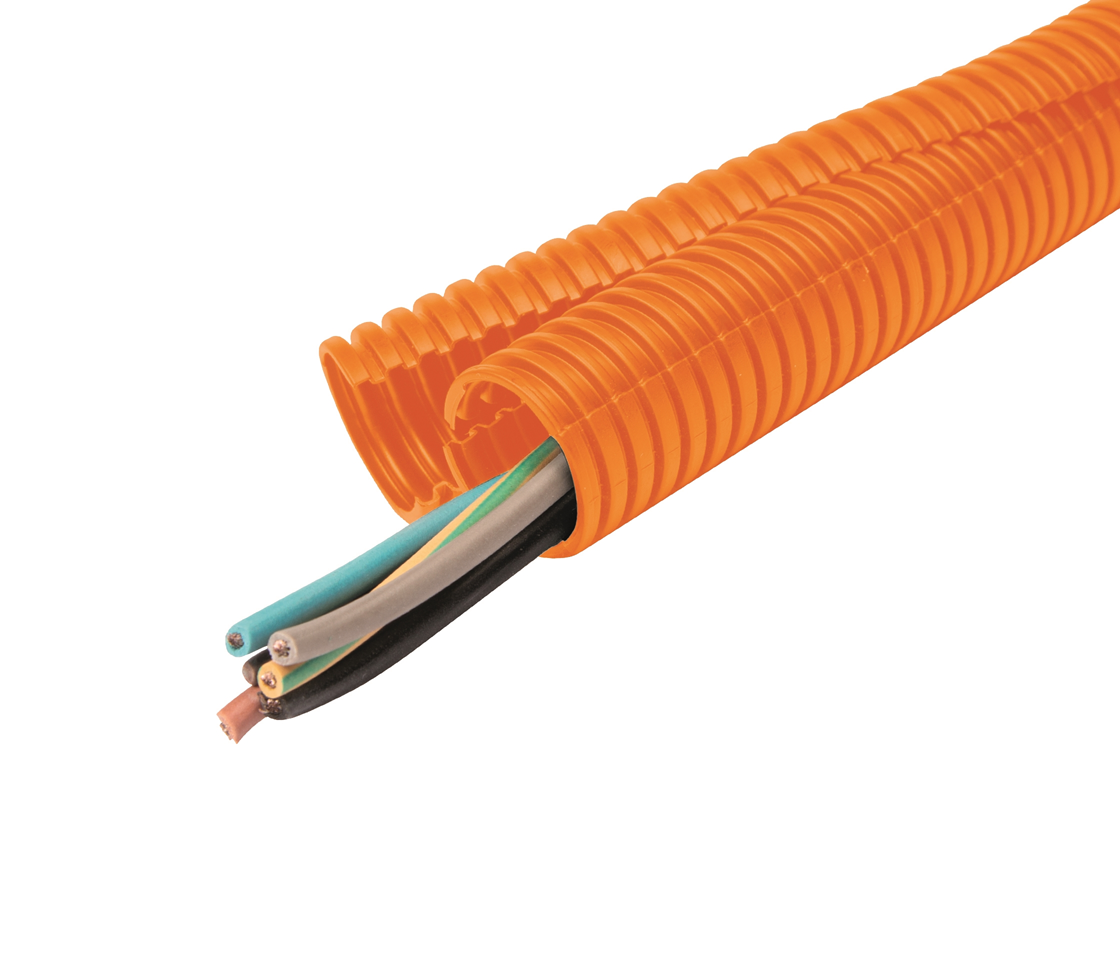

The corrugated conduit type Duplex Hybraplica is the perfect solution for retrofit applicatin of cable protection. The double shell conduit properly overlaps and provides enhanced cable protection capabilities against external influences and impacts. Pre-assembled cable harnesses with already installed connectors can be accomlished easily and safe. Color similar to RAL 2003.
Material
Polypropylene (PP)
Sheathing material
Not sheathed
Lengthwise slotted
Yes
Closable (two-part)
Yes
Operating temperature
-40...+105 °C
Fire resistance according to UL94
V2
Flame accelerating
No
UV resistant
Yes
Oil resistant
No
Halogen free
Yes
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
No
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
![PZ_ROHS](/CatCache/catcache.2/pictures/PZ_ROHS/PZ_ROHS_S.jpg)
![PZ_CE](/CatCache/catcache.2/pictures/PZ_CE/PZ_CE_S.jpg)
11 Artikel
Reset filters
Filter
Item

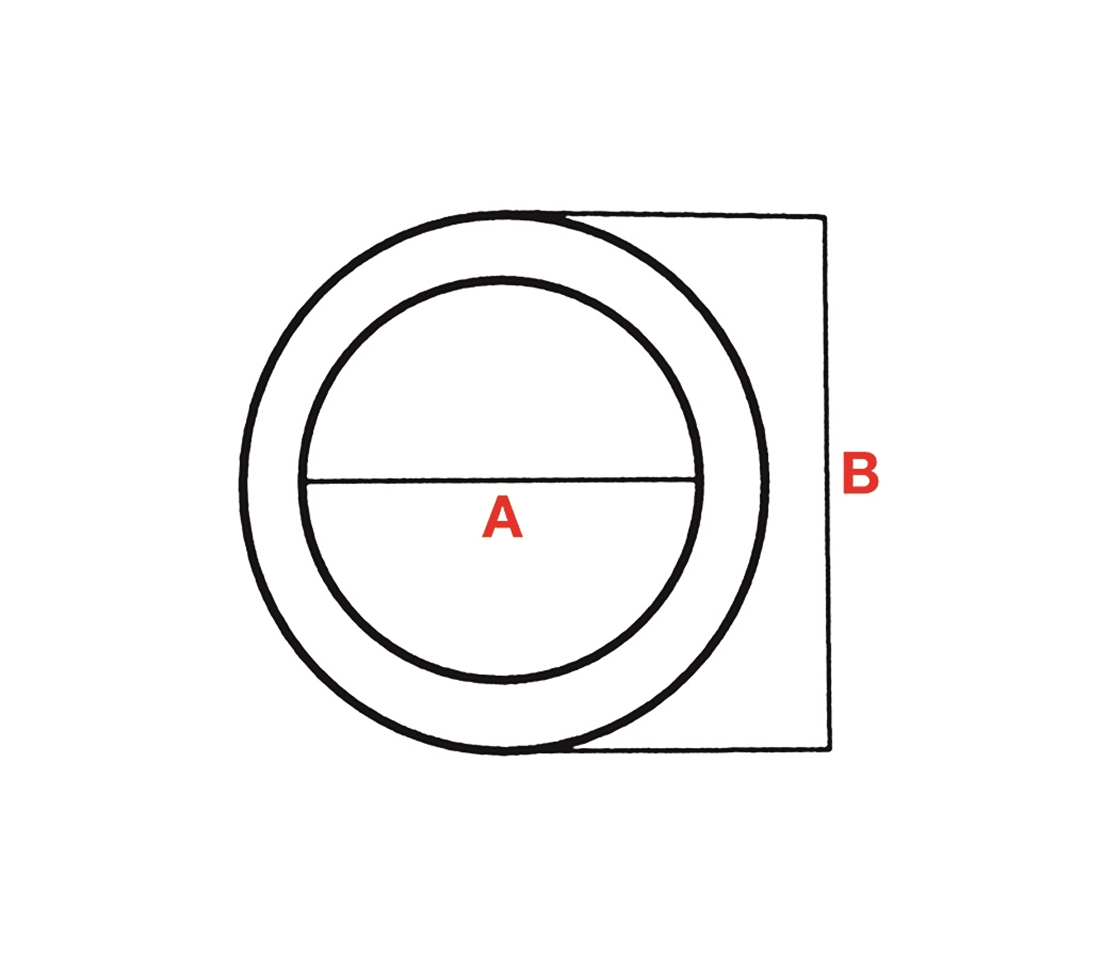

Nominal diameter mm
Outer diameter mm
Inner diameter mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 801210007Nominal diameter
mm 7Outer diameter
mm 10Inner diameter
mm 6.3Bending radius, static
mm 20Colour OrangeAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801210010Nominal diameter
mm 10Outer diameter
mm 13.4Inner diameter
mm 8.4Bending radius, static
mm 25Colour OrangeAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801210011Nominal diameter
mm 11Outer diameter
mm 16.1Inner diameter
mm 11Bending radius, static
mm 30Colour OrangeAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801210014Nominal diameter
mm 14Outer diameter
mm 18.5Inner diameter
mm 12.5Bending radius, static
mm 35Colour OrangeAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801210016Nominal diameter
mm 16Outer diameter
mm 21.5Inner diameter
mm 16Bending radius, static
mm 40Colour OrangeAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801210023Nominal diameter
mm 23Outer diameter
mm 30.8Inner diameter
mm 23.4Bending radius, static
mm 50Colour OrangeAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801210029Nominal diameter
mm 29Outer diameter
mm 35.3Inner diameter
mm 27.3Bending radius, static
mm 90Colour OrangeAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801210037Nominal diameter
mm 37Outer diameter
mm 41.4Inner diameter
mm 31Bending radius, static
mm 110Colour OrangeAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801210070Nominal diameter
mm 70Outer diameter
mm 79.8Inner diameter
mm 67.5Bending radius, static
mm 190Colour OrangeAvailabilitySU 10 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801211045Nominal diameter
mm 45Outer diameter
mm 54Inner diameter
mm 42.7Bending radius, static
mm 130Colour OrangeAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 801211100Nominal diameter
mm 100Outer diameter
mm 102.5Inner diameter
mm 87.5Bending radius, static
mm 210Colour OrangeAvailabilitySU 10 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
