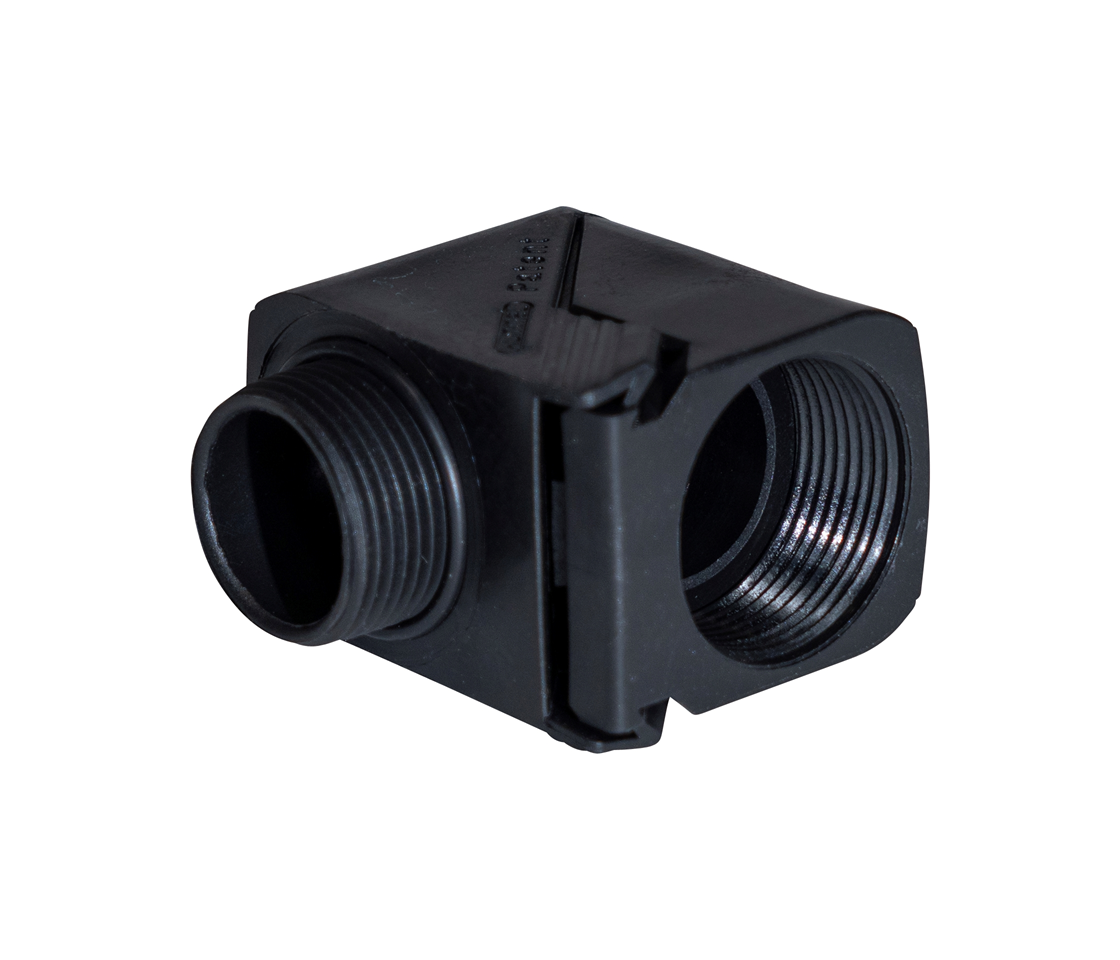

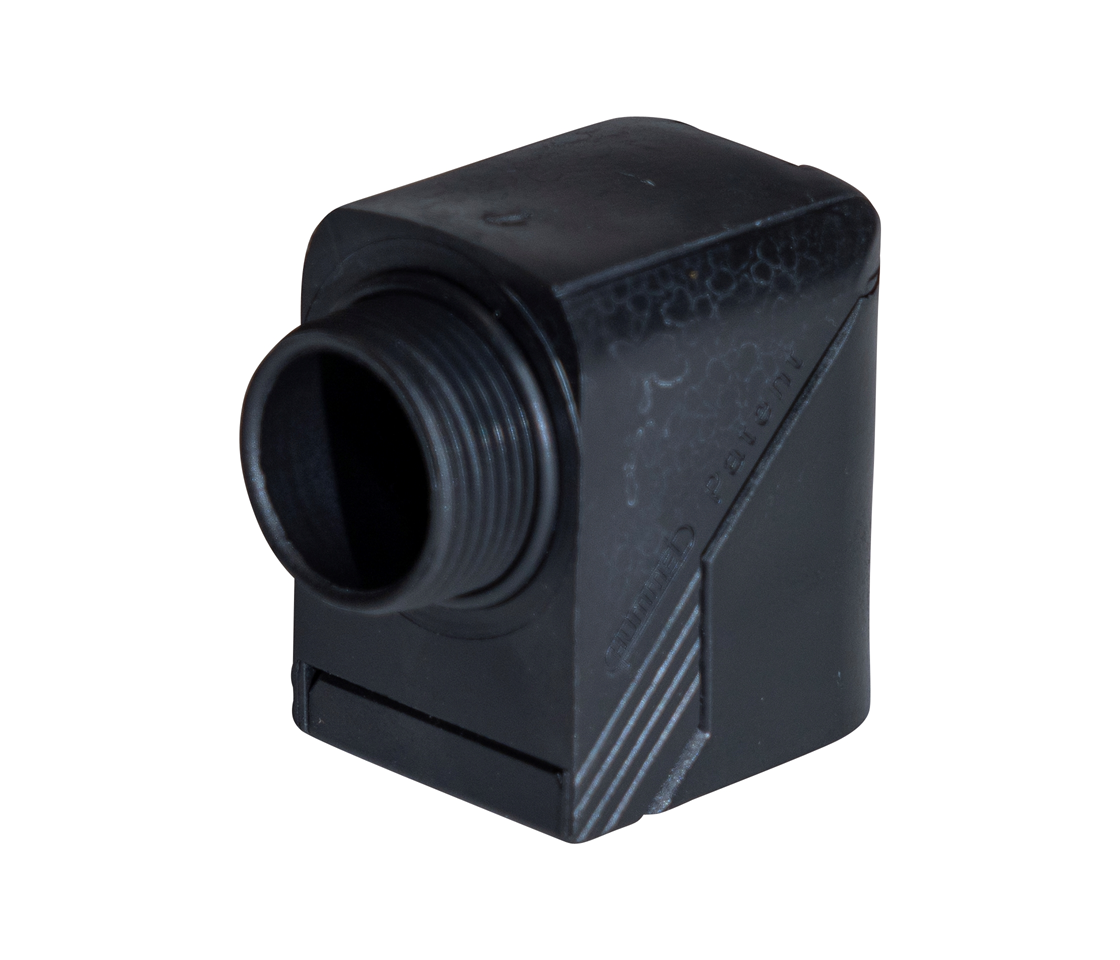

Snap-elbow PA 25pc KLAPP-WI K M20/PG11 black

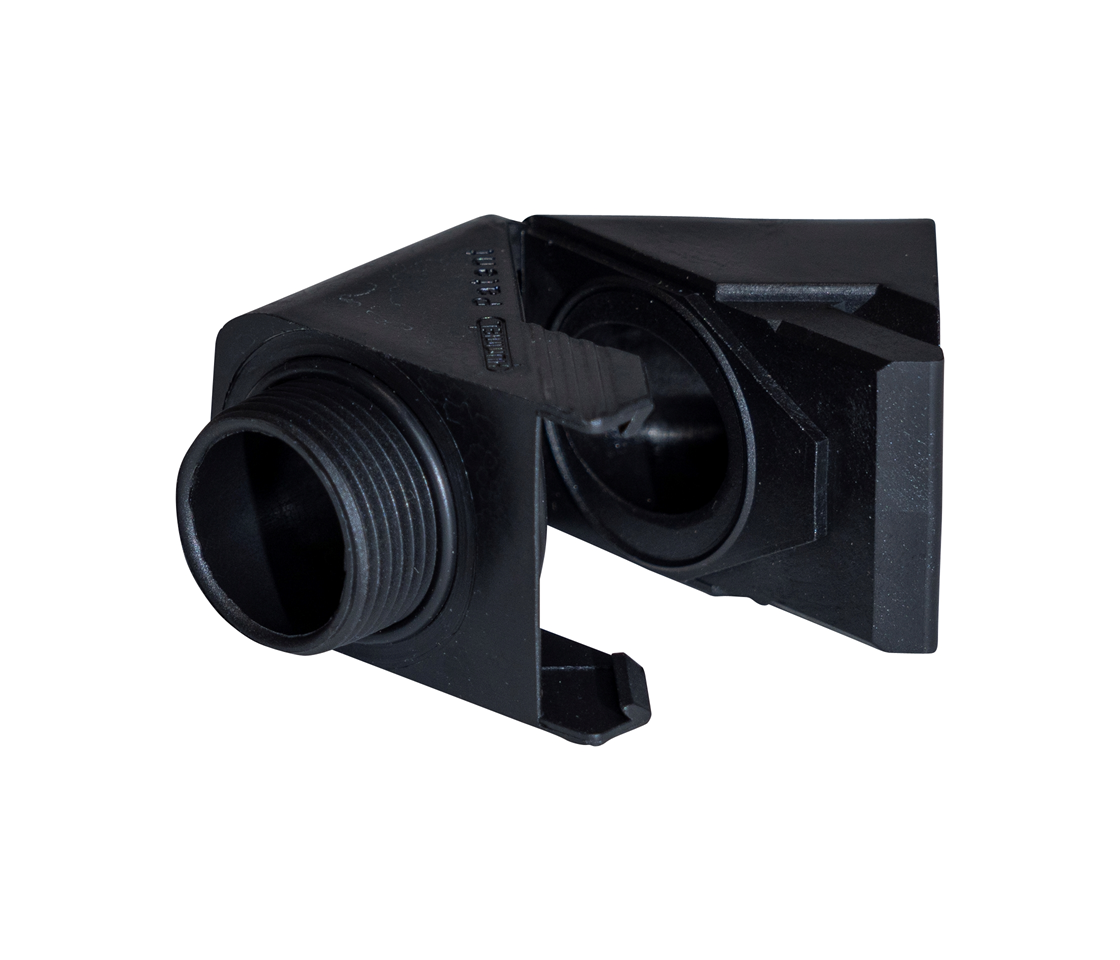

Enhance your cable installation with the innovative KLAPP-WI from PLICA, which opens to 90° and allows for horizontal cable entry. This unique mechanism ensures gentle bending of the cable without any risk of damage. The KLAPP-WI is designed to be opened retrospectively at any time, making it ideal for subsequent use with all types of glands. Equipped with an O-ring on the connecting thread, this cable gland head guarantees a secure and leak-proof connection.
Wrench width
24 mm
Colour
Black
Material
Plastic
Material quality
Polyamide (PA)
Glass-fibre reinforced
No
Shock resistant
No
Bend radius protection/trumpet flare
No
With locknut
No
Flat cable coupling
No
Separable screw gland
No
Multi seal area
No
Operating temperature
-20…+80 °C
Degree of protection (IP)
IP68
Halogen free
Yes
UV-resistant
Yes
Explosion-tested version
No
EMC-version
No
Fire behavior
nicht ausbreitend UL 94 V2
interior hot melt adhesive
No
1 Artikel
Item
Thread type
Thread length mm
number opening
Suitable for cable diameter mm
RAL-number
Availability
SU
Price / SU in CHF excl. VAT
- Item 905315209Thread type M20Thread length
mm 9number openingSuitable for cable diameter
mmRAL-numberAvailabilitySU 25 StkPrice / SU in CHF excl. VAT
This item is available in 4 other versions.
