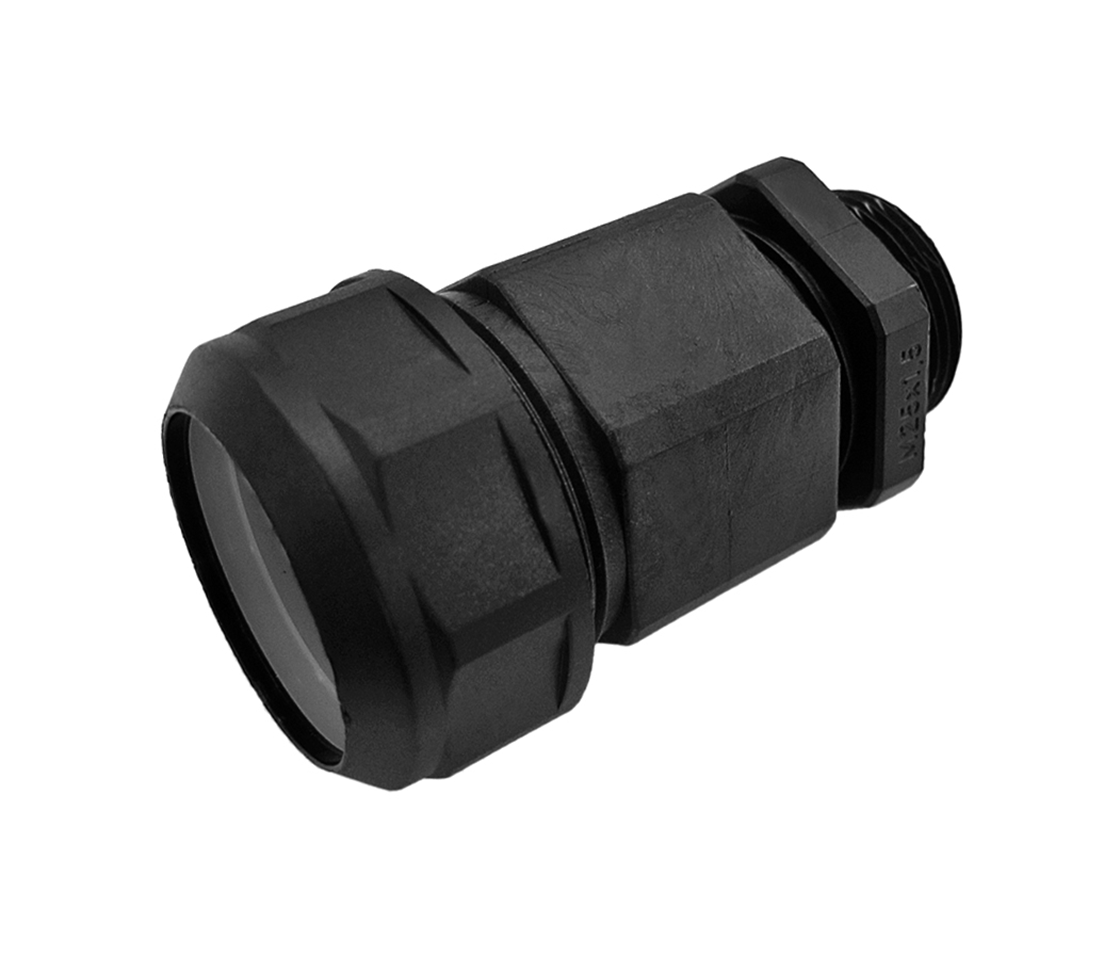

Conduit fitting PA6 50St SV CSKV AG M16 DN9 black with strain relief
Combined conduit fitting and cable gland 2 in 1 suitable for our corrugated conduits Pasoflex, Nylflex, Conduflex and Roboflex. Due to the clamping of the whole conduit diameter a maximal pull out strength resistance is guaranteed. Ideal strain relief due to the iris formed blades. The fitting must not be disassembled for the installation.
series
KSKV(M)
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Metric
Thread
metrisch
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP65
Halogen free
No
UV-resistant
No
Operating temperature
-40...+110 °C
1 Artikel
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHF excl. VAT
- Item 801240016Nominal diameter
mm 9Thread connection size M16 x 1.5Lowest inner diameter hose
mm 4Max. outer diameter hose
mm 8Colour BlackThread length
mm 8Total length
mm 53AvailabilitySU 50 StkPrice / SU in CHF excl. VAT
This item is available in 3 other versions.
