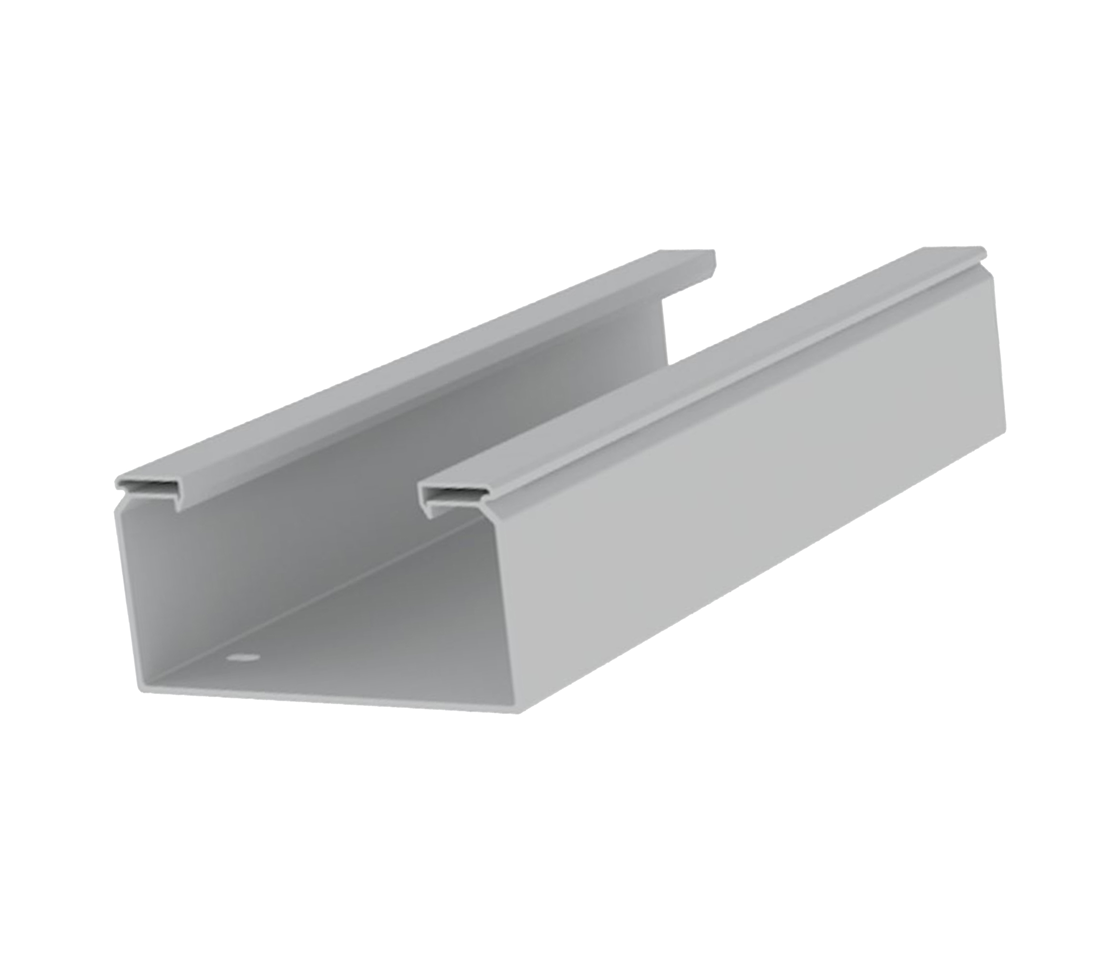

Unperforated cable tray, UNEX U23X
Insulating cable tray according to IEC 61537: 2006 (The values indicated according to IEC 61537: 2006 have been tested under its European implementation EN 61537:2007.
For support, protection and conduction of cables.
Good performance outdoor, to corrosion and to chemical agents (ISO/TR 10358, DIN8061).
Designed to support full load.
Unex insulating cable tray with cover, by complying with the European Standard EN 50085-2-1, is considered a protecting enclosure (trunking).
Impact test for trunkings: IK10 (with cover fixing).
Safety: electrical; mechanical (protection against impacts 20J acc. IEC 61537; designed to work at 100% cable capacity) and in front of fire (glow-wire test at 960 °C; non-flame propagator). Easy and quick mounting. No burrs at cutting.
Insulating material. Length: 3 m. Colour: grey RAL7035.
>Order cover separately
Length
3000 mm
Useful cross section
16155 mm²
With cover
No
Side wall perforation
No
Mounting perforation in bottom
Yes
NATO-mounting holes
No
Model
Without connector
Wide span model
No
Suitable for circuit integrity
No
Material
Plastic
Stainless steel, pickled
No
Material quality
Polyvinyl chloride (PVC)
Surface protection
Other
Colour
Grey
RAL-number
7035
Max. safe working load according to IEC 61537
369 N/m
Span between supports according to IEC 61537
1500 mm
Load test type according to IEC 61537
Type I
11 Artikel
Reset filters
Filter
Item
Height mm
Width mm
Material thickness mm
Weight kg/m
series
Availability
SU
Price / SUexcl. VAT
- Item 107600162Height
mm 100Width
mm 200Material thickness
mm 5Weight
kg/m 3.029series 66221AvailabilitySU 6 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600163Height
mm 100Width
mm 300Material thickness
mm 5Weight
kg/m 4.159series 66321AvailabilitySU 6 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600164Height
mm 100Width
mm 400Material thickness
mm 5Weight
kg/m 5.491series 66421AvailabilitySU 6 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600165Height
mm 100Width
mm 500Material thickness
mm 5Weight
kg/m 7.1series 66521AvailabilitySU 6 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600166Height
mm 100Width
mm 600Material thickness
mm 5Weight
kg/m 8.254series 66621AvailabilitySU 6 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600167Height
mm 60Width
mm 100Material thickness
mm 4Weight
kg/m 1.27series 66101AvailabilitySU 24 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600168Height
mm 60Width
mm 150Material thickness
mm 4Weight
kg/m 1.658series 66151AvailabilitySU 12 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600169Height
mm 60Width
mm 200Material thickness
mm 4Weight
kg/m 2.04series 66201AvailabilitySU 12 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600170Height
mm 60Width
mm 300Material thickness
mm 4Weight
kg/m 3.061series 66301AvailabilitySU 12 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600171Height
mm 60Width
mm 400Material thickness
mm 4Weight
kg/m 4.293series 66401AvailabilitySU 6 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600172Height
mm 60Width
mm 75Material thickness
mm 4Weight
kg/m 1.025series 66091AvailabilitySU 24 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
