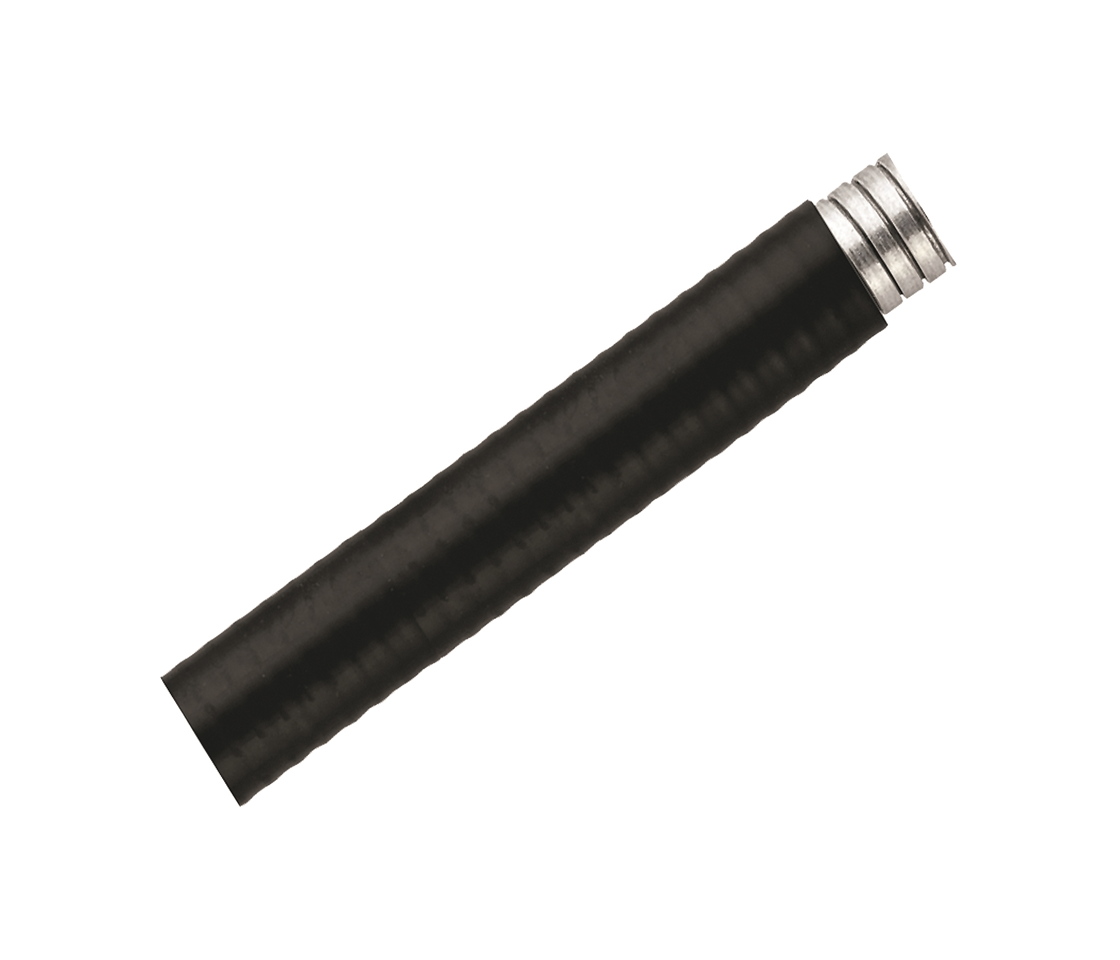

LTP Metal Protective Conduit for Outdoor Applications and Liquid Tightness
The LTP Metal Protective Conduit from plica is specially designed for outdoor applications requiring liquid tightness. Ideal for machinery, railway, and marine industries. Made of galvanized steel with an oil-resistant PVC coating.
Material
Steel
Surface protection
Galvanized
Sheathing material 1st coating
Polyvinyl chloride (PVC), oil durable
Sheathing material 2nd coating (exterior)
Not sheathed
Sealing
No sealing
Operating temperature
-20...+105 °C
Degree of protection (IP)
IP69
Flame accelerating
No
Suitable for EX-applications
No
Bending strength
Flexible
Approved according to FI
No
With approval according to UL
No
UV-resistant
Yes
14 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Wall thickness mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 860000103Nominal diameter
mm 10Outer diameter
mm 11.8Inner diameter
mm 7Wall thickness
mm 2.4Bending radius, static
mm 35Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000104Nominal diameter
mm 12Outer diameter
mm 14.2Inner diameter
mm 10Wall thickness
mm 2.1Bending radius, static
mm 40Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000105Nominal diameter
mm 12Outer diameter
mm 14.2Inner diameter
mm 10Wall thickness
mm 2.1Bending radius, static
mm 40Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000106Nominal diameter
mm 16Outer diameter
mm 17.8Inner diameter
mm 12.6Wall thickness
mm 2.6Bending radius, static
mm 45Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000107Nominal diameter
mm 16Outer diameter
mm 17.8Inner diameter
mm 12.6Wall thickness
mm 2.6Bending radius, static
mm 45Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000108Nominal diameter
mm 20Outer diameter
mm 21.1Inner diameter
mm 16Wall thickness
mm 2.55Bending radius, static
mm 65Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000109Nominal diameter
mm 20Outer diameter
mm 21.1Inner diameter
mm 16Wall thickness
mm 2.55Bending radius, static
mm 65Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000110Nominal diameter
mm 25Outer diameter
mm 26.4Inner diameter
mm 21Wall thickness
mm 2.7Bending radius, static
mm 100Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000111Nominal diameter
mm 25Outer diameter
mm 26.4Inner diameter
mm 21Wall thickness
mm 2.7Bending radius, static
mm 100Colour BlackAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000112Nominal diameter
mm 32Outer diameter
mm 33.1Inner diameter
mm 26.5Wall thickness
mm 3.3Bending radius, static
mm 135Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000113Nominal diameter
mm 40Outer diameter
mm 41.8Inner diameter
mm 35.4Wall thickness
mm 3.2Bending radius, static
mm 175Colour BlackAvailabilitySU 10 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000114Nominal diameter
mm 50Outer diameter
mm 47.9Inner diameter
mm 40.4Wall thickness
mm 3.75Bending radius, static
mm 230Colour BlackAvailabilitySU 10 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000115Nominal diameter
mm 63Outer diameter
mm 59.7Inner diameter
mm 51.6Wall thickness
mm 4.05Bending radius, static
mm 280Colour BlackAvailabilitySU 10 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 860000116Nominal diameter
mm 63Outer diameter
mm 59.7Inner diameter
mm 51.6Wall thickness
mm 4.05Bending radius, static
mm 280Colour BlackAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
