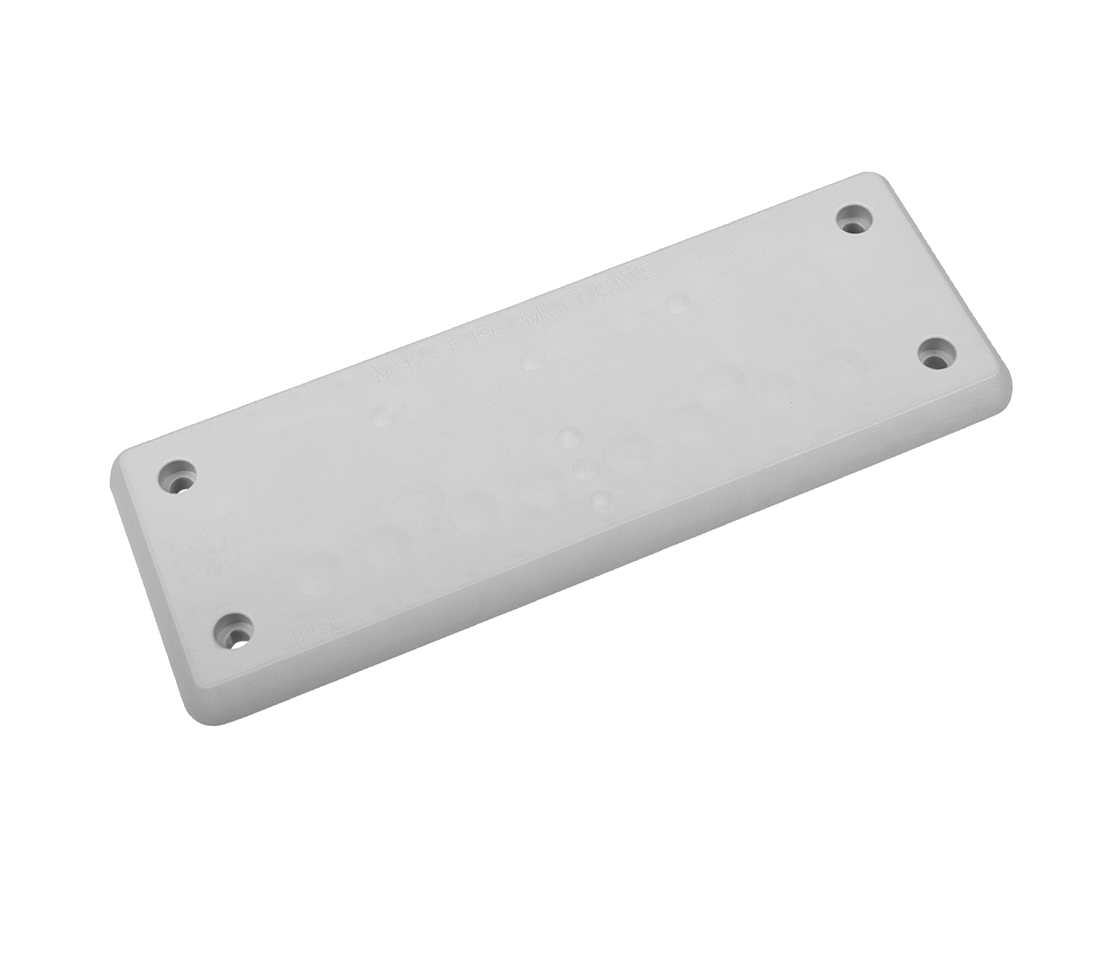

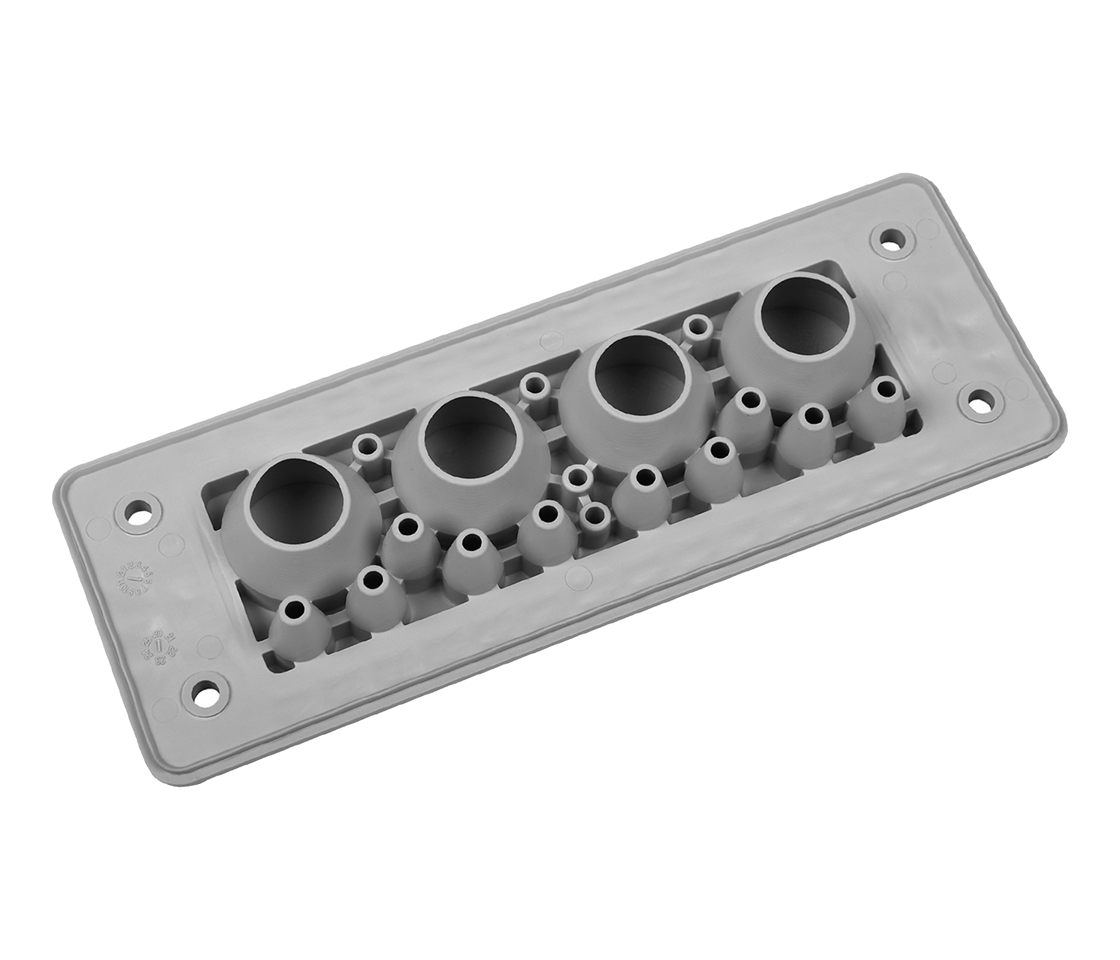

Cable entry plates, Trelleborg MULTIGATE-B24 (112x36 mm)

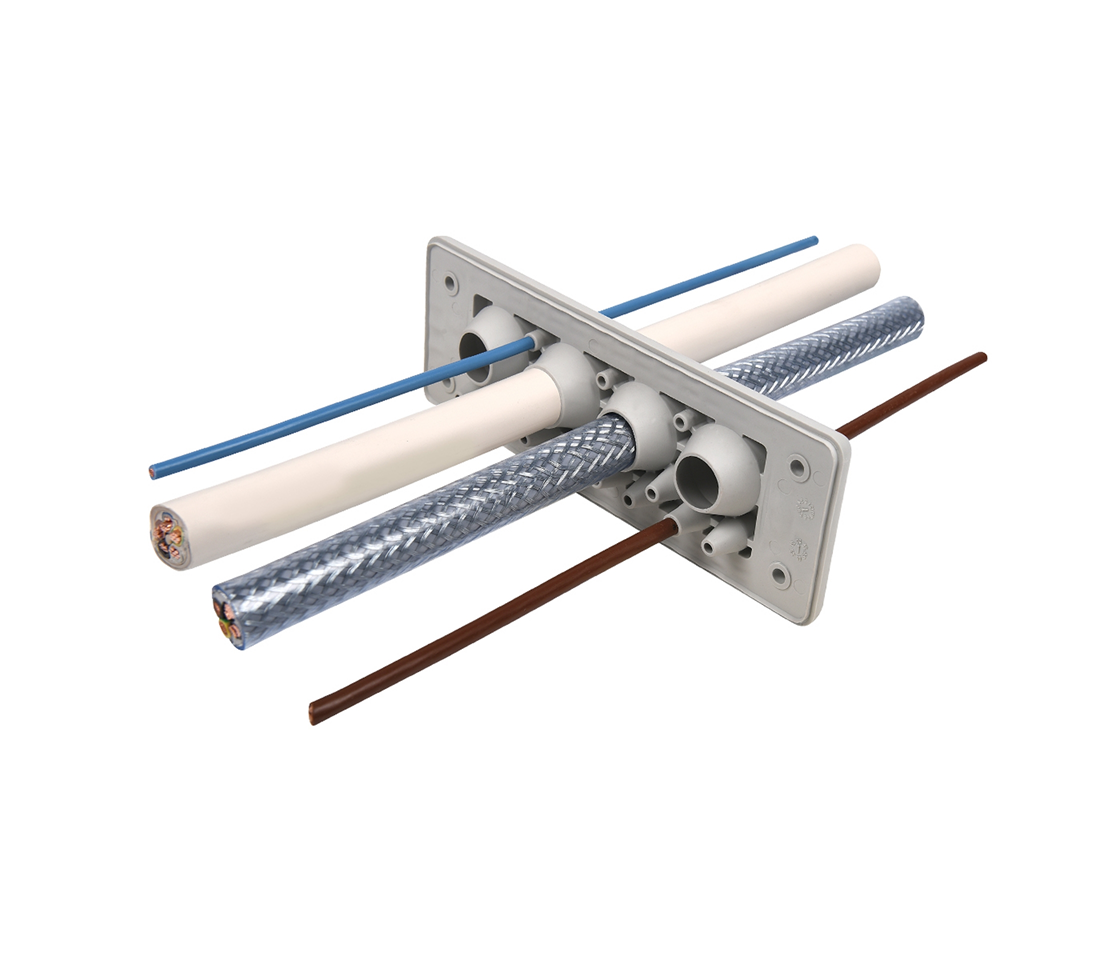

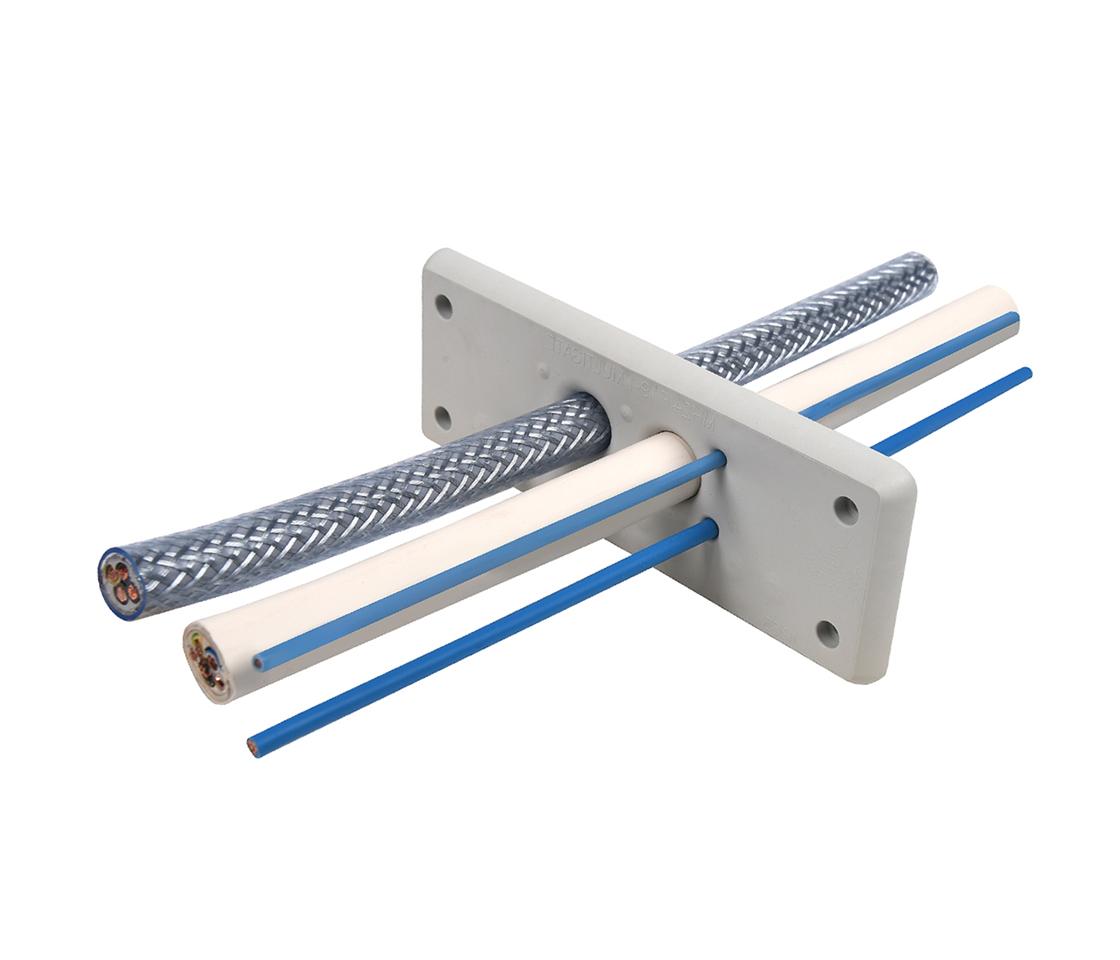

Discover the MULTIGATE B24 cable entry plate by PLICA, ideal for routing cables and hoses in electrical cabinets, plant construction, and automation. This cable entry plate measuring 112 x 36 mm is specially designed for the B24 industrial connector opening. The construction is based on a plastic frame with a TPE membrane. The version is closed and suitable for cable glands. The cable entry is through a long slot. The MULTIGATE B24 is halogen-free, gas-tight, fireproof, and waterproof, with an IP66 protection rating. It is suitable for an operating temperature range of -40 to +90 °C. The cable entry plate is available in grey color and in stock. It provides an efficient and reliable solution for your cable management needs, ideal for use in various industrial applications.
Model
Closed
Suitable for cable gland
Yes
Cable entry
Long-slot
With strain relief
No
Shrink technique
No
Angle model
No
Material
Plastic
Material quality
Other
Surface protection
Untreated
Halogen free
Yes
Colour
Grey
Gastight
Yes
Fire resistant
Yes
Watertight
Yes
Degree of protection (IP)
IP66
Operating temperature
-40…+90 °C
series
CABLE-ENTRY-PLATE-MH24-F22-1
neck
B24
11 Artikel
Reset filters
Filter
Item
Bore diameter mm
Suitable for cable diameter mm
Number of cables
Thread size (metric)
Thread size PG
length mm
broad
Availability
SU
Price / SUexcl. VAT
- Item 970024005Bore diameter
mmSuitable for cable diameter
mm 3…20Number of cables 0…22Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024006Bore diameter
mmSuitable for cable diameter
mm 3…13Number of cables 0…27Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024007Bore diameter
mmSuitable for cable diameter
mm 1.5…5Number of cables 0…125Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024008Bore diameter
mmSuitable for cable diameter
mm 1.5…16.5Number of cables 0…23Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024009Bore diameter
mmSuitable for cable diameter
mm 1.5…22Number of cables 0…19Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024010Bore diameter
mmSuitable for cable diameter
mm 1.5…12Number of cables 0…20Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024011Bore diameter
mmSuitable for cable diameter
mm 3.2…12Number of cables 0…31Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024012Bore diameter
mmSuitable for cable diameter
mm 3.2…6.5Number of cables 0…42Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024013Bore diameter
mmSuitable for cable diameter
mm 1.5…12.5Number of cables 0…23Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024014Bore diameter
mmSuitable for cable diameter
mm 1.5…14.5Number of cables 0…30Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 970024015Bore diameter
mmSuitable for cable diameter
mm 1.5…10.5Number of cables 0…30Thread size (metric)Thread size PGlength
mm 112broad 36AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
