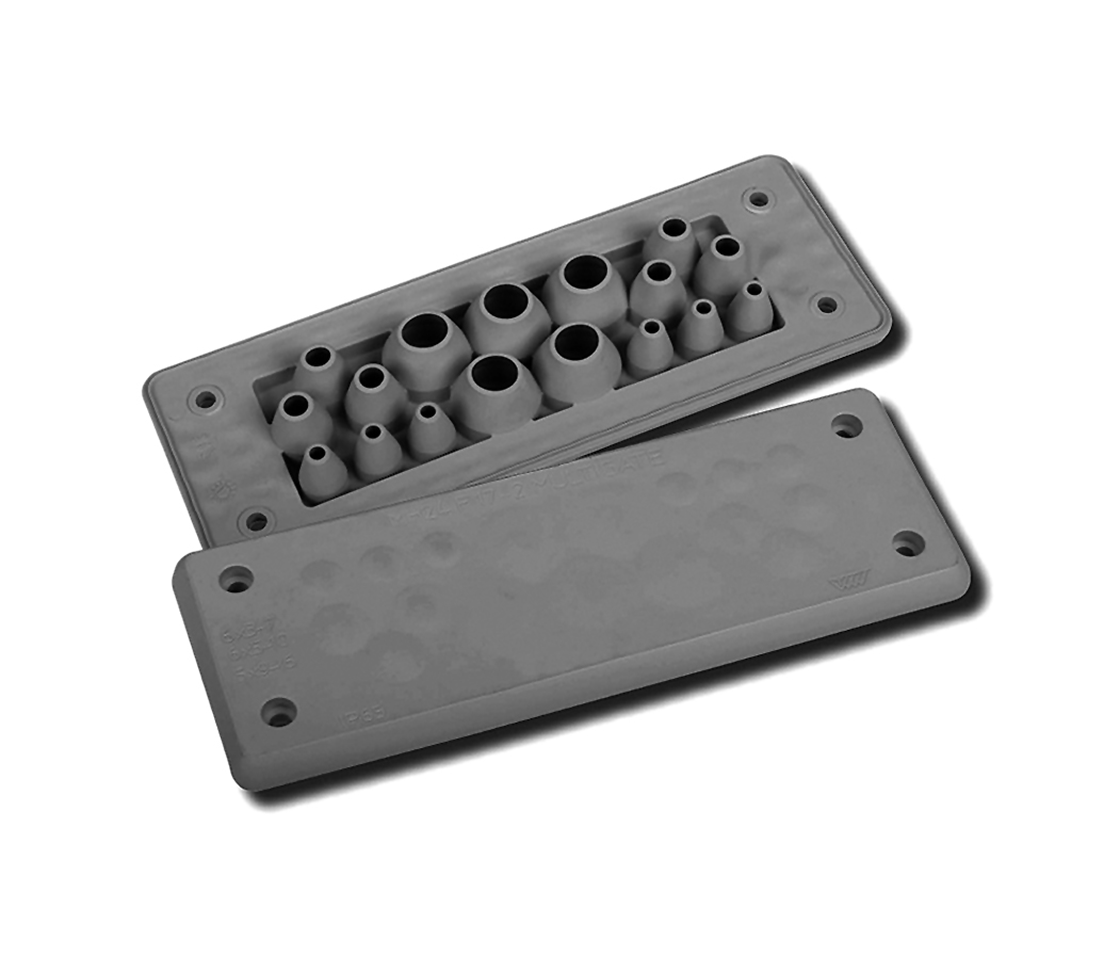

Cable gland plate MULTIGATE MH-24
Discover the MULTIGATE MH-24 F 17-2 cable entry plate by PLICA, suitable for installing non-preassembled cables. With its high cable density, the MH-24 can accommodate up to 17 cables of various diameters. The cable entry plate, measuring 154 x 56 x 19 mm, meets the IP65 protection standard. It provides openings for cable diameters of 3-7 mm (6 pieces), 5-10 mm (6 pieces), and 9-16 mm (5 pieces). Four expansion rivets are also included. The version is closed and suitable for cable glands. The cable entry is through a long slot. This cable entry plate is an efficient and reliable solution for your cable management needs, ideal for use in various industrial applications.
Model
Closed
Suitable for cable gland
Yes
Cable entry
Long-slot
With strain relief
No
Shrink technique
No
Angle model
No
Material
Plastic
Material quality
Other
Surface protection
Untreated
Halogen free
Yes
Colour
Grey
Gastight
Yes
Fire resistant
Yes
Watertight
Yes
Degree of protection (IP)
IP66
Operating temperature
-40…+90 °C
series
CABLE-ENTRY-PLATE-MH24-F17-2
neck
B24
