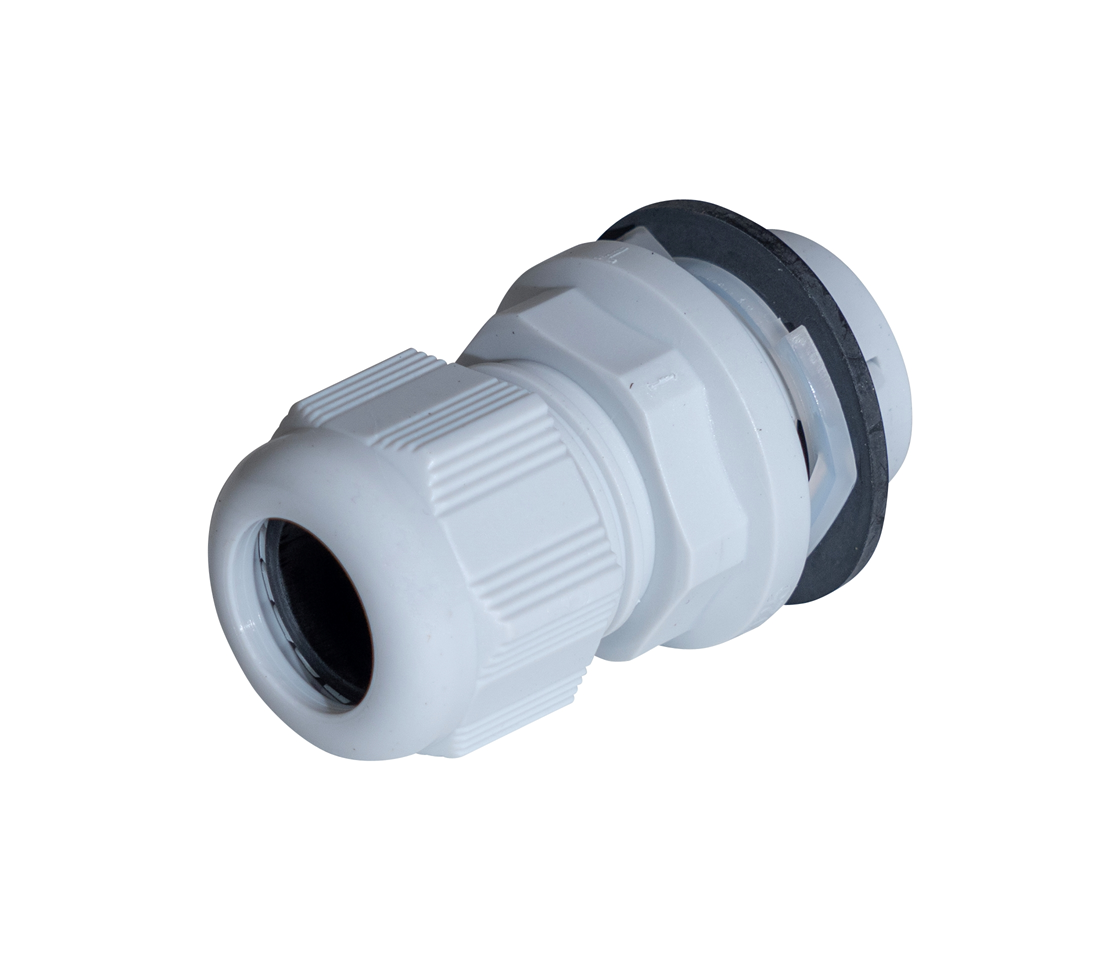

Cable gland PA6 20pc PLICA SNAP-IN M40 (19-28) lg without locknut
Enhance your automation level efficiently with the innovative cable gland from PLICA SNAP-IN K. This cable gland is designed to significantly reduce your workload. Thanks to its simple click-in system, the cable gland is effortlessly installable, making it ideal for tight spaces. The new mounting system of the cable gland eliminates the need for a locknut, which makes the installation even faster and more straightforward. Learn more about this time-saving solution at PLICA SNAP-IN K and see how it optimizes your processes.
Pitch thread
1.5 mm
Wrench width
46 mm
Colour
Grey
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Glass-fibre reinforced
No
Shock resistant
No
Bend radius protection/trumpet flare
No
With locknut
No
Flat cable coupling
No
Separable screw gland
No
Type of sealing
Sealing ring
Multi seal area
No
Operating temperature
-20...+100 °C
Degree of protection (IP)
IP68
Halogen free
Yes
UV-resistant
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
EMC-version
No
Fire behavior
flame resistance UL 94 V2
standard
EN 60423
interior hot melt adhesive
No
sealing quality
Cloroprene
1 Artikel
Item
Thread type
Thread length mm
number opening
Suitable for cable diameter mm
RAL-number
Availability
SU
Price / SU in CHF excl. VAT
- Item 963200040Thread type M40Thread length
mm 11.5number openingSuitable for cable diameter
mm 19...28RAL-number 7035AvailabilitySU 20 StkPrice / SU in CHF excl. VAT
This item is available in 9 other versions.
