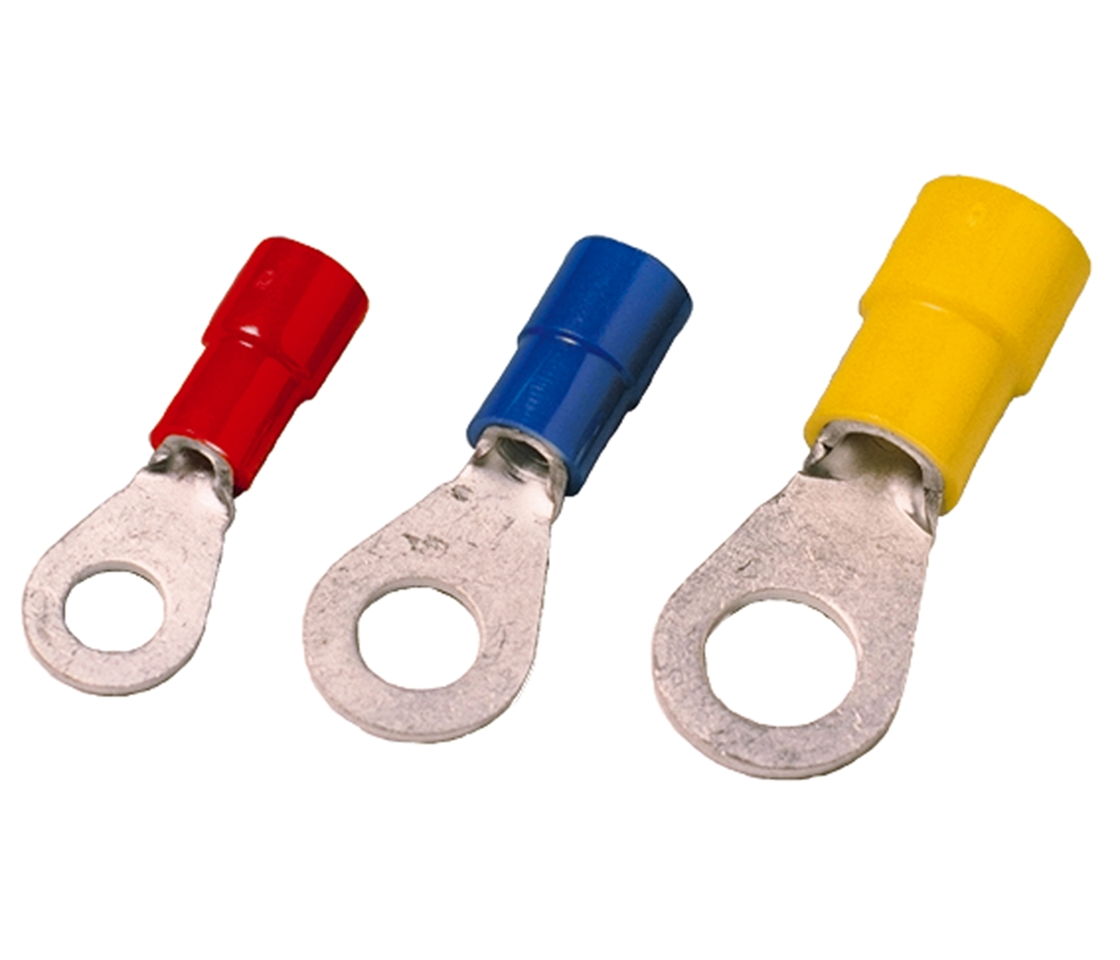

crimp terminal insulated QKS IS 0.1-0.5mm2 M3 yl 100pc DIN 46237
With expanded isolation sleeve. Material Cu-ETP, Isolation PC (or * Isolation PA). S = narrow tab.
Flange shape
Ring shape
According to DIN
Yes
Insulation
Polycarbonate (PC)
Reel/roll packaging
No
Sleeve form
Short
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
Yes
Suitable for insulated varnish
Yes
Suitable for round conductors
Yes
Suitable for flat conductors
Yes
For pull protected connections
Yes
Material
Copper
Surface protection
Tinned
series
QKS-IS-DIN-46237
1 Artikel
Item
Bolt dimension (metric)
Colour insulation
Nominal cross section mm²
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 614400030Bolt dimension (metric) 3Colour insulation YellowNominal cross section
mm² 0.1...0.5Total length
mm 14AvailabilityTo orderSU 100 StkPrice / SU excl. VATCHF13.45/ 100 pcsCHF13.45/ 100 pcs
This item is available in 38 other versions.
