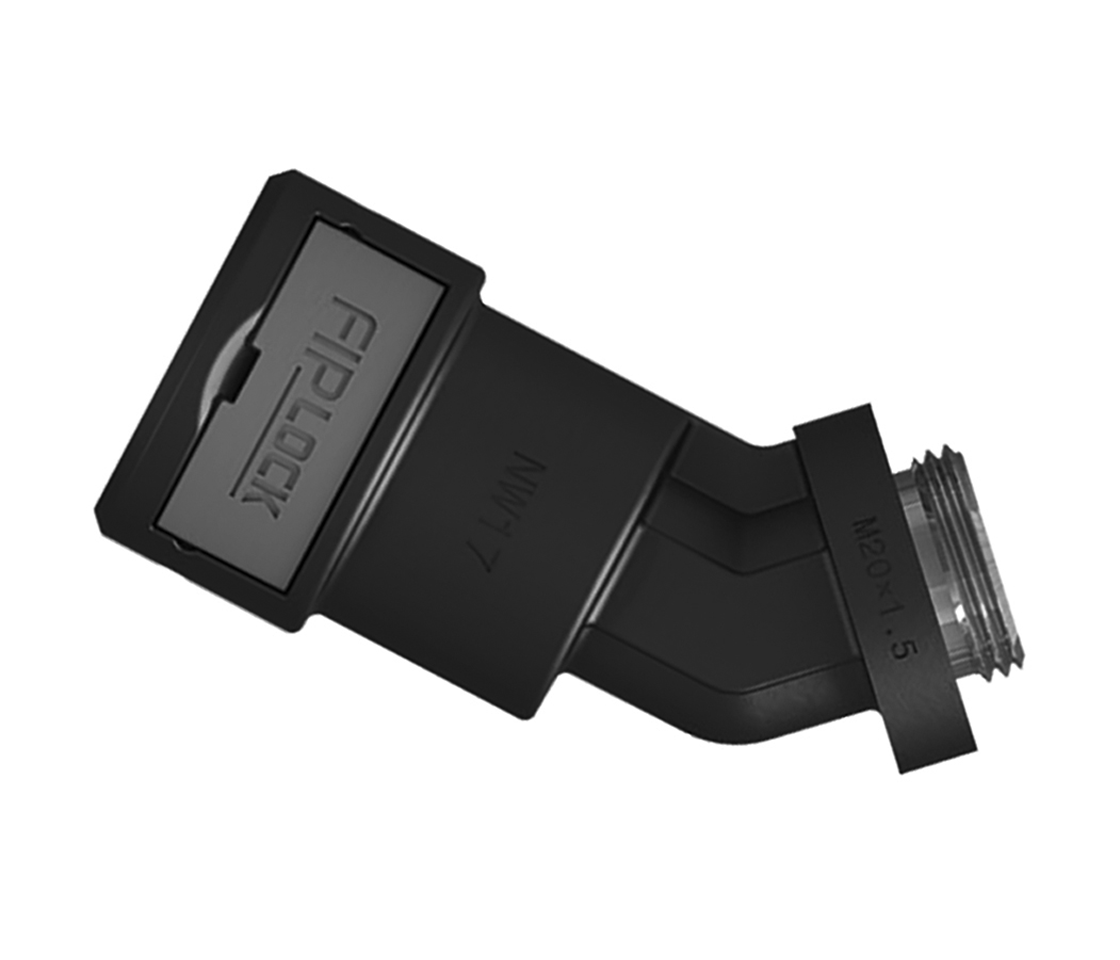

Fitting 45° elbow, metric, metal thread
The one-piece 45°-elbow cable protection conduit fitting AAPA-MMK with a short metric metal thread made of brass nickel plated and specially modified, free-halogen polyamide 6. Due to its excellent UV-resistance for outdoor installations. With the brand new 360° interlocking system and an inside conduit seal, AAPA-MMK complies with the highest possible protection class IP69 in combination with our FIPLOCK® corrugated conduits.
series
AAPA-MMK
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Metric
Thread
metrisch
Type of connection
Thread
Construction type
External thread
Revolving thread
No
Model
45°-elbow
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
16 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 880000022Nominal diameter
mm 24.7Thread connection size M12 x 1.5Lowest inner diameter hose
mm 5.3Max. outer diameter hose
mmColour BlackThread length
mm 5Total length
mm 53.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000023Nominal diameter
mm 24.7Thread connection size M12 x 1.5Lowest inner diameter hose
mm 5.3Max. outer diameter hose
mmColour GreyThread length
mm 5Total length
mm 53.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000024Nominal diameter
mm 28.5Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9Max. outer diameter hose
mmColour BlackThread length
mm 5Total length
mm 58.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000025Nominal diameter
mm 28.5Thread connection size M16 x 1.5Lowest inner diameter hose
mm 9Max. outer diameter hose
mmColour GreyThread length
mm 5Total length
mm 58.8AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000026Nominal diameter
mm 34Thread connection size M20 x 1.5Lowest inner diameter hose
mm 13Max. outer diameter hose
mmColour BlackThread length
mm 6Total length
mm 73.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000027Nominal diameter
mm 34Thread connection size M20 x 1.5Lowest inner diameter hose
mm 13Max. outer diameter hose
mmColour GreyThread length
mm 6Total length
mm 73.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000028Nominal diameter
mm 41.7Thread connection size M25 x 1.5Lowest inner diameter hose
mm 18Max. outer diameter hose
mmColour BlackThread length
mm 7Total length
mm 80.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000029Nominal diameter
mm 41.7Thread connection size M25 x 1.5Lowest inner diameter hose
mm 18Max. outer diameter hose
mmColour GreyThread length
mm 7Total length
mm 80.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000030Nominal diameter
mm 48.4Thread connection size M32 x 1.5Lowest inner diameter hose
mm 25Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 84AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000031Nominal diameter
mm 48.4Thread connection size M32 x 1.5Lowest inner diameter hose
mm 25Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 84AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000032Nominal diameter
mm 59.7Thread connection size M40 x 1.5Lowest inner diameter hose
mm 32.8Max. outer diameter hose
mmColour BlackThread length
mm 8Total length
mm 108.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000033Nominal diameter
mm 59.7Thread connection size M40 x 1.5Lowest inner diameter hose
mm 32.8Max. outer diameter hose
mmColour GreyThread length
mm 8Total length
mm 108.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000034Nominal diameter
mm 71Thread connection size M50 x 1.5Lowest inner diameter hose
mm 42.4Max. outer diameter hose
mmColour BlackThread length
mm 9Total length
mm 118.6AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000035Nominal diameter
mm 71Thread connection size M50 x 1.5Lowest inner diameter hose
mm 42.4Max. outer diameter hose
mmColour GreyThread length
mm 9Total length
mm 118.6AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000036Nominal diameter
mm 71Thread connection size M63 x 1.5Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mmColour BlackThread length
mm 10Total length
mm 123.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000037Nominal diameter
mm 71Thread connection size M63 x 1.5Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mmColour GreyThread length
mm 10Total length
mm 123.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
